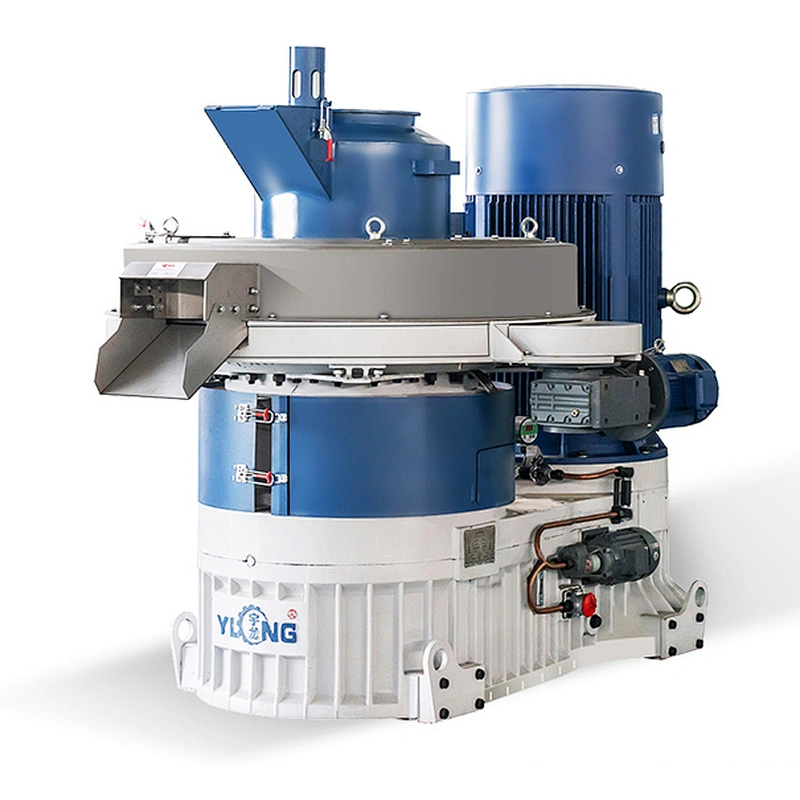

8th Generation Centrifugal Wood Pellet Machine Biomass Pellet Machine
High Productivity Patented Product
Model Number:XGJ560
Power:90kw,132kw,160kw
Raw Material Proce:Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton Stalks...
Output (kg/h):1500 - 2000 kg/h
Voltage:3phases, 380V ,50hz
Dimension(L*W*H):2600x1300x2300mm
Certification:CE, ISO
Place of Origin:Shandong, China
Biomass pellet machine is a kind of pellet equipment commonly used in the biomass energy industry. It is a new type of fuel molding machine that crushes biomass raw materials such as tree branches and straws into rod-shaped particles to replace coal. Biomass pellet machine is divided into flat die machine and ring die machine. The vertical centrifugal high-efficiency ring die biomass pellet machine produced by our company combines the advantages of traditional horizontal ring die and flat die pellet machine, and is especially suitable for biomass pelleting.
Advantages of our biomass pellet machine

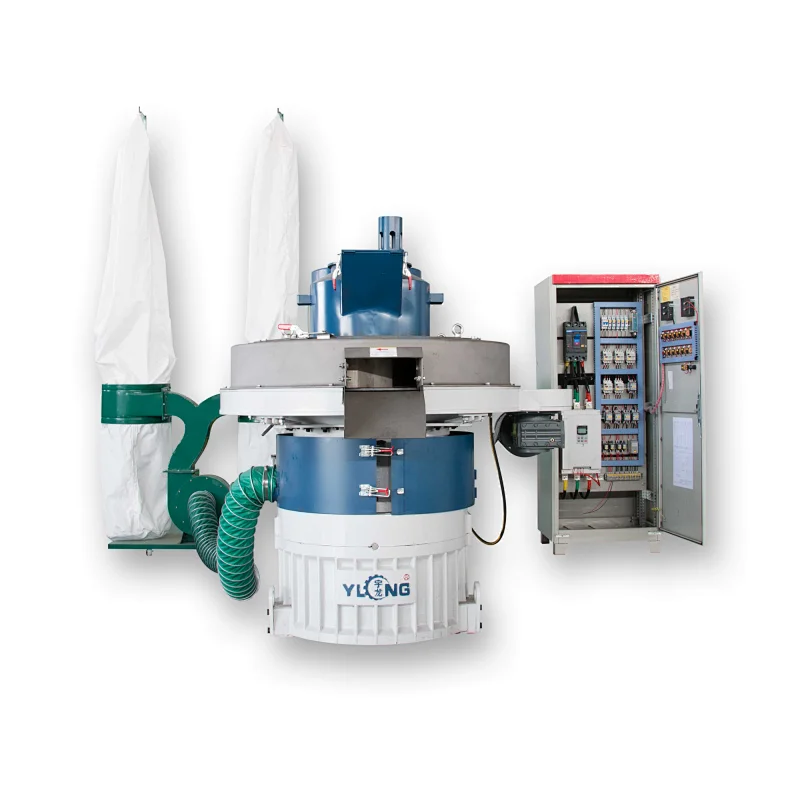

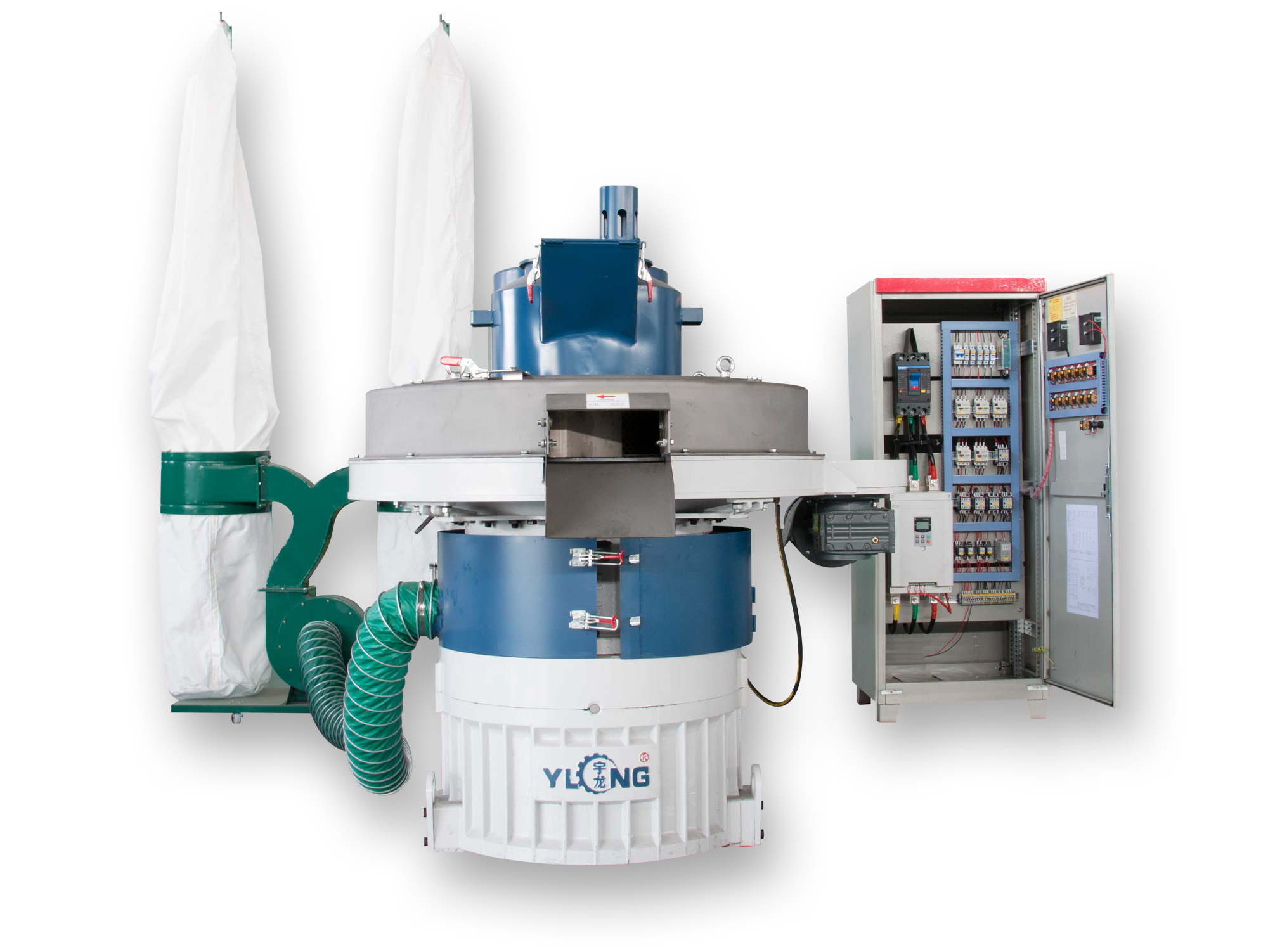

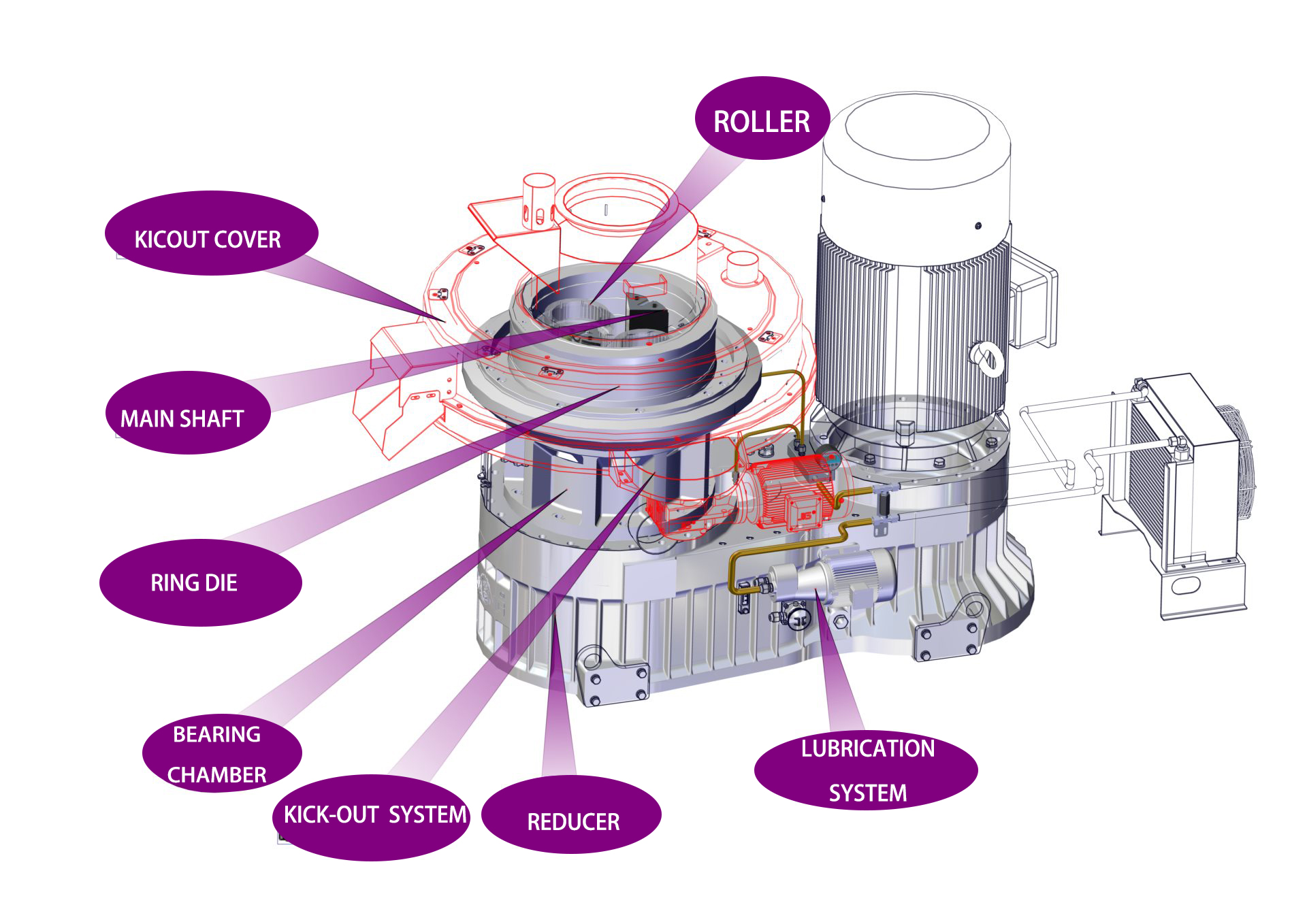

1. biomass pellet machine is mainly composed of pellet machine, lubricating oil pump, dust collector and electric control cabinet.
2. The power is 132KW and the capacity is 1.5-2 tons/hour. The motor is directly connected with the gear box to increase the conversion rate of kinetic energy and increase production efficiency.

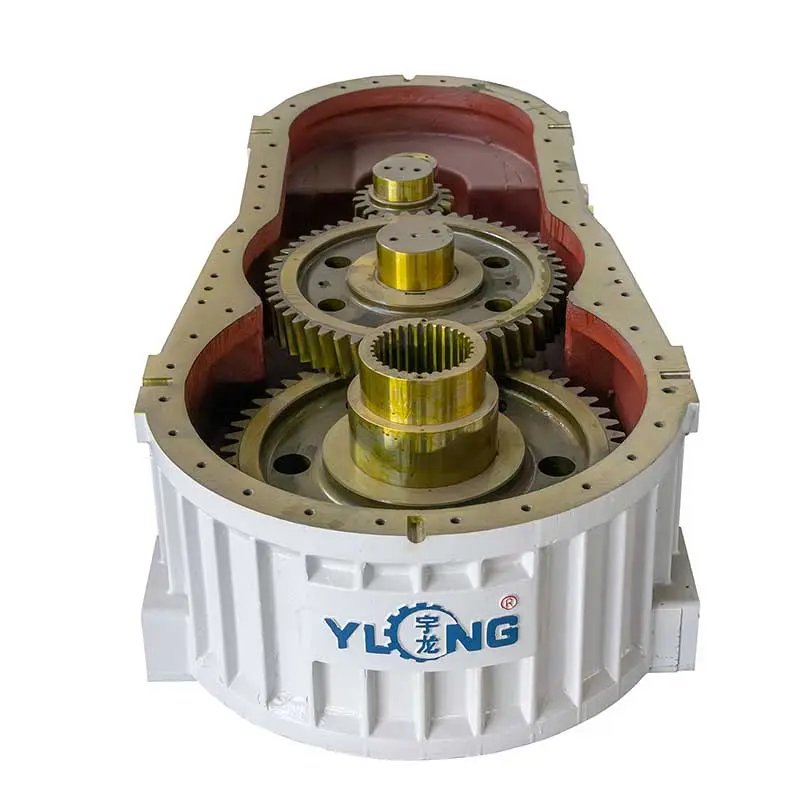

Technical advantages of biomass pellet machine gearbox

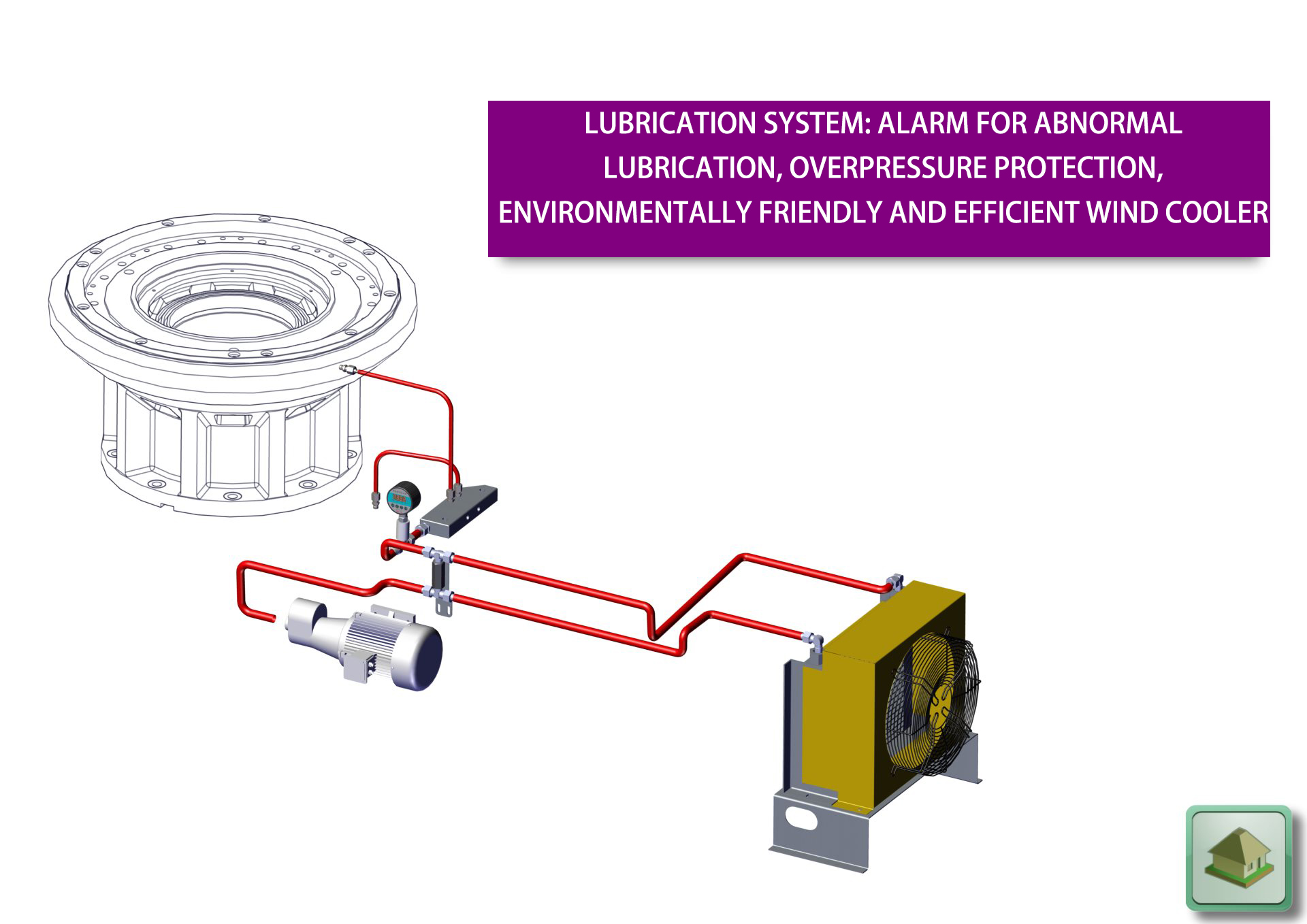

The gearbox adopts a three-stage gear reduction, the carrying capacity is 5 times larger than the old model, and the service life is super long. The gear shaft bearing is an adjustable structure, and the bearing can be adjusted without unloading the machine for a long time-long-term wear and tear. The gearbox is equipped with a lubricating cooling system, which can cool the lubricating oil without stopping the machine, ensuring long-term operation. The gearbox lubrication system is equipped with flow detection and overpressure protection, which can effectively prevent equipment failures caused by poor lubrication.

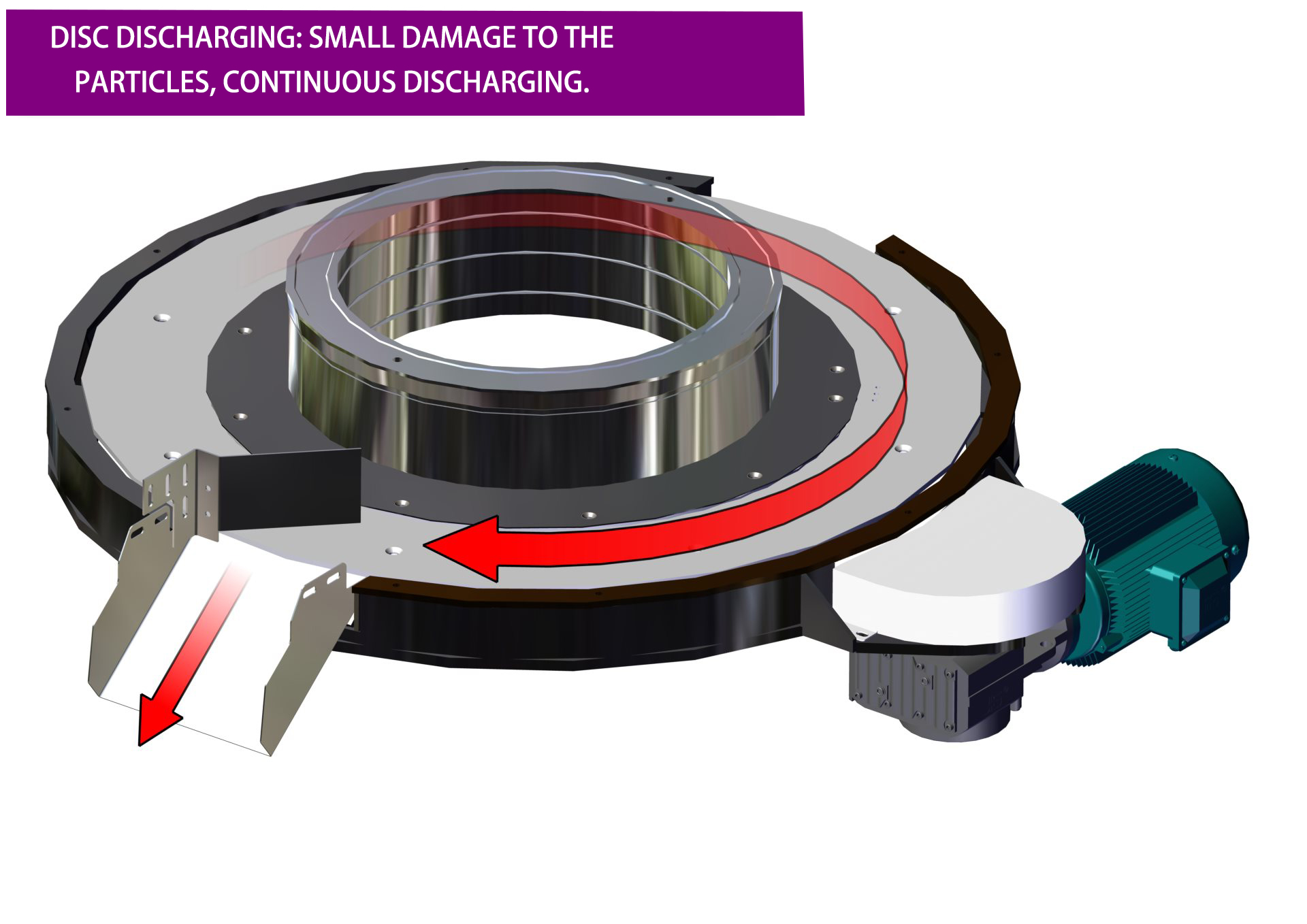

New feed system
The external setting of the tray completely solves the problem that the tray is easily corroded by high-temperature steam. It is a major innovation of the eighth-generation biomass pellet machine. In the material transfer cover, except for the material transfer turntable, other non-moving parts in contact with materials and steam are made of stainless steel, which fundamentally solves the problem of corrosion of metal materials.

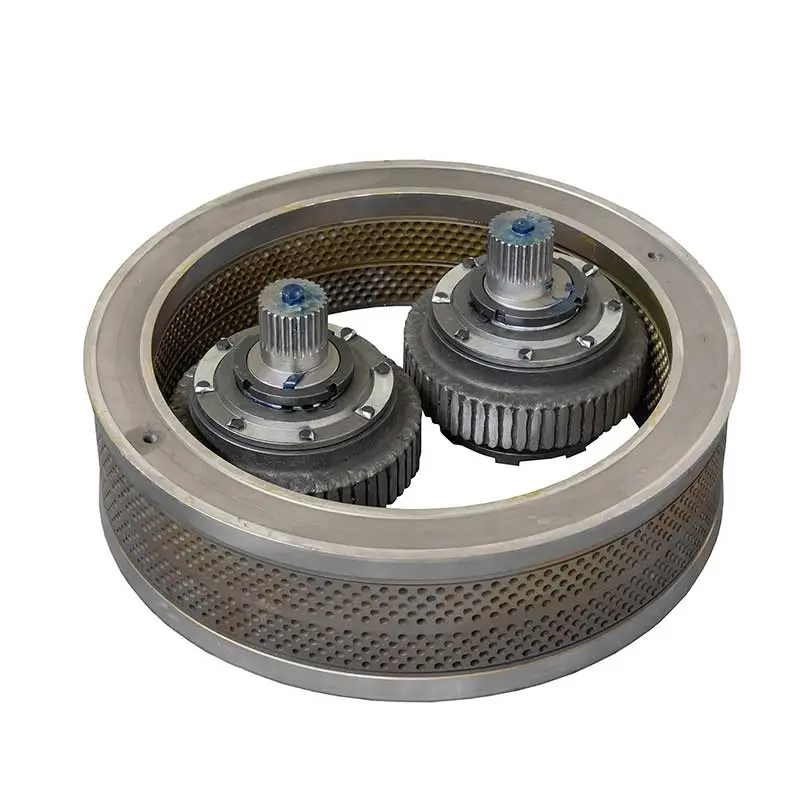

Mould and pressure roller
1. Core component-ring die: using wear-resistant stainless steel material, quenched in a vacuum furnace, the die has uniform hardness, no damage, and super wear-resistant; the die holes are processed by high-speed gun drilling, the holes are evenly arranged, and the inside of the holes is smooth.
2. The core component-roller: the roller adopts super wear-resistant alloy welding technol
XGJ560 pellet machine installation
