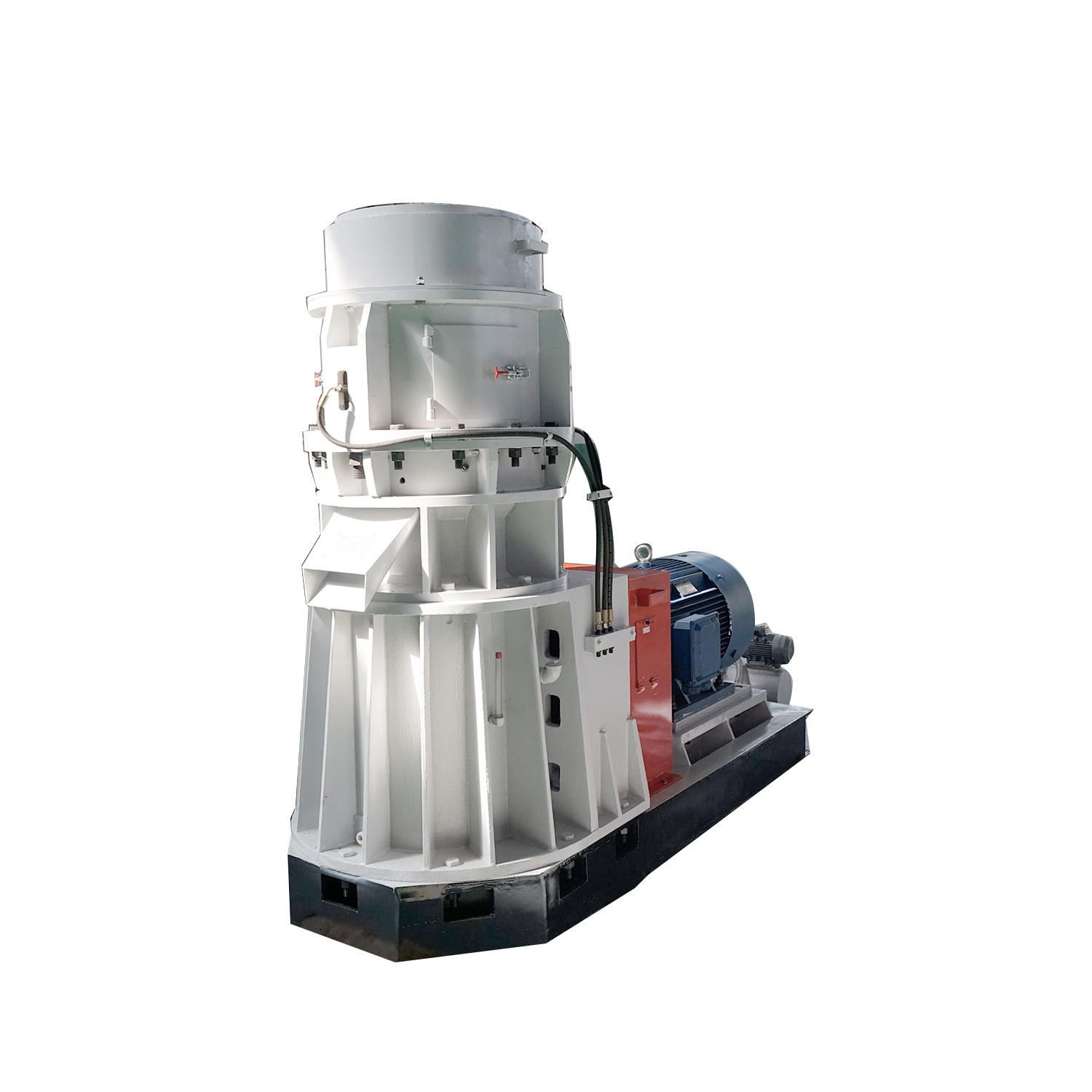

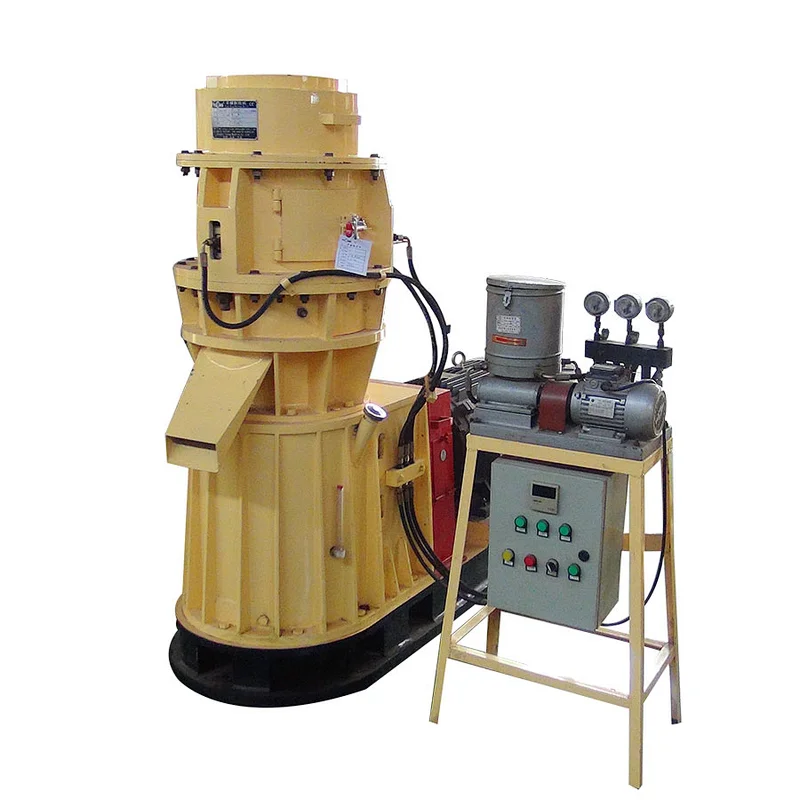

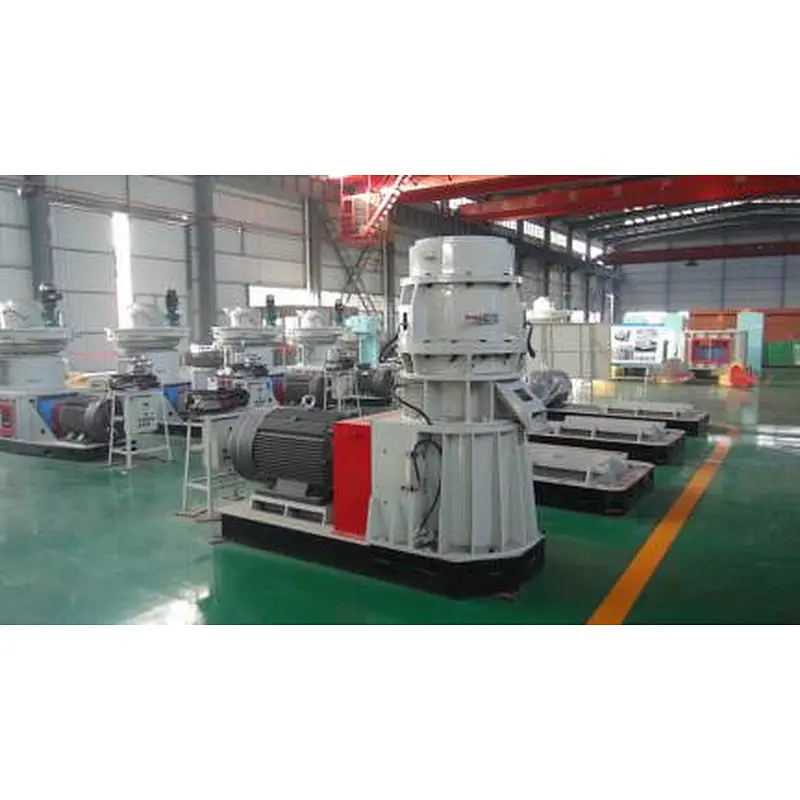

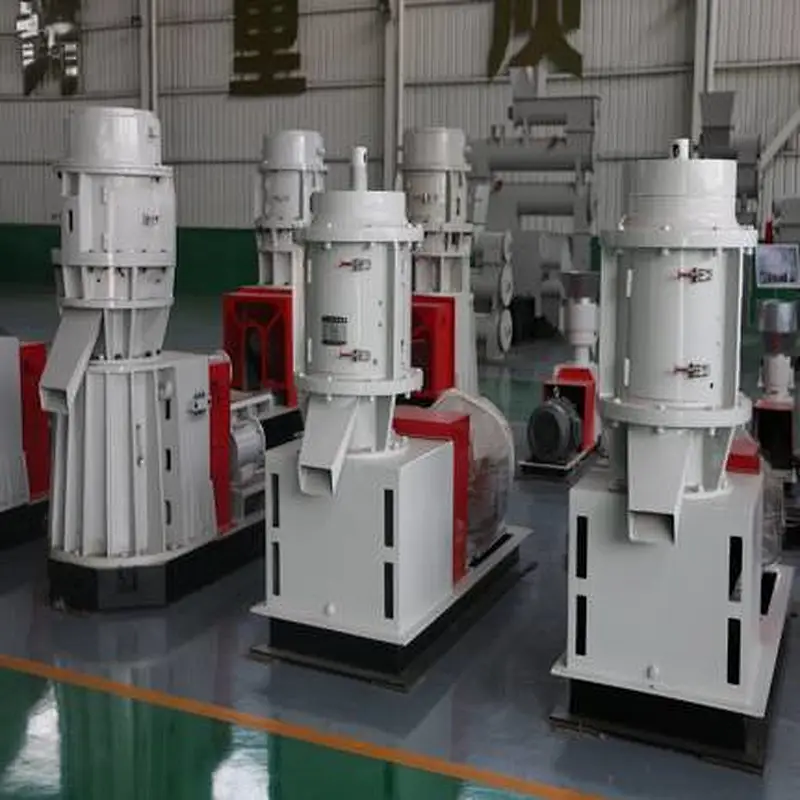

SKJ3 Flat Die Pellet Mill
Our company has introduced into Germanic advanced pellet pressing technology, inventing the Taper-shape roller series flat die pellet mill. Flat die pellet mill can make pellets (6-12mm), briquettes (15-30mm), which is mainly applicable to crude fiber granulation, such
as: sawdust (especially for soft wood sawdust), cotton stalk and all kinds of crop straw, home wastage, the worn out plastic and
the factory reject, the material of low ashesion rate and difficult to forming, they also can be applied to low temperature pelleting, such as: biological fertilizer, organic fertilizer, compound fertilizer. It is especially confirmed to the world market of renewable compression biomass energy demand. Flat die pellet mill are our patent products.

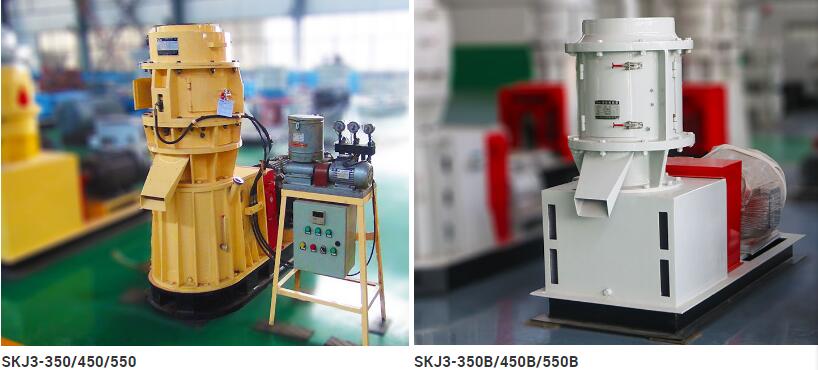

Flat Die Pellet Mill Parameter
| Model | Power(kw) | Feed capacity(kg/h) | FIbe capacity(kg/h) | Fertilizer capacity(kg/h) |
| SKJ3-350 | 37+5.5+0.37 | 700-1200 | 300-500 | 600-1200 |
| SKJ3-450 | 37+5.5+0.37 | 1000-2000 | 500-800 | 800-1500 |
| SKJ3-550 | 55/90+5.5+0.37 | 2000-3000 | 700-1200 | 2000-3000 |

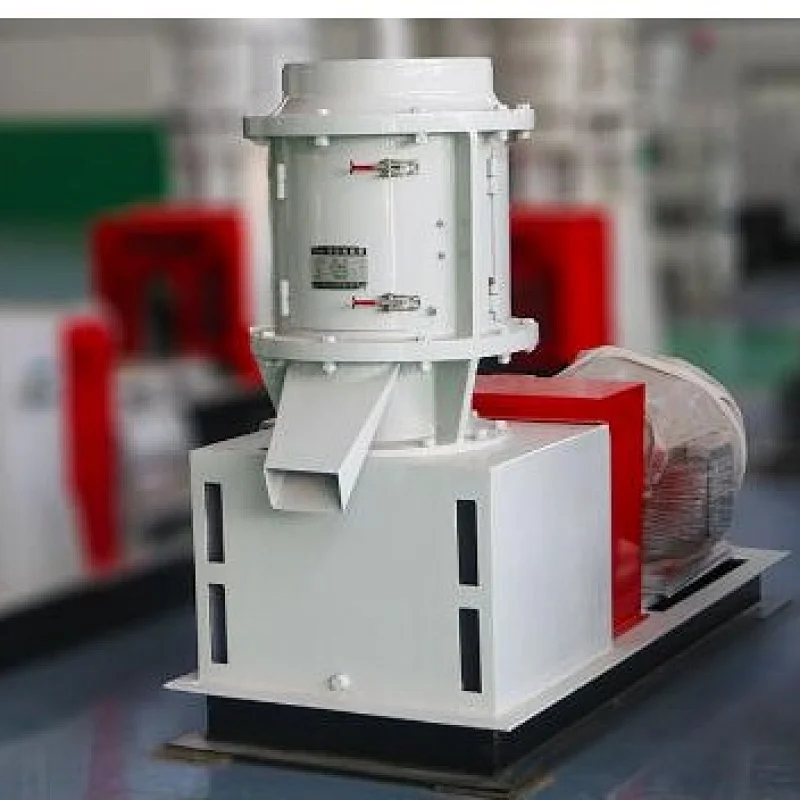

| SKJ3-550B | 30+0.55 | 400-800 | ||
| SKJ3-550B | 45+0.55 | 700-1200 | ||
| SKJ3-550B | 75+0.55 | 800-1500 |
Flat Die Pellet Mill Spare parts--roller
Rolller
The rollers adopts Taper-shape to make both ends line-speed consistent to die-inner and die-outer, so it avoids dislocation
friction between rollers and dies,so the dies'lifetime is enlarged. This is significant difference between the similar compression formation machines.
Flat die pellet mill with three rollers
Company Introduction
Q: General questions to design the production line for you?
A: 1. What is your raw materials? (to confirm mould pressure ratio of machines )
2. What is the moisture content of your raw material?
3. How many output capacity do you want per hour / month/ year?
Note: If the moisture is high, you need a dryer, becuase the suitable moisture content to enter pellet machine is 13-15%. And
please provide us above detailed information, then we would design the most suitable production line with reasonble offers.
2. Q: How long is your guarantee?
A: 12 months warranty but except quick waering parts.
3. Q: Will you send engineers to install the machines?
A: Of course. Our company has professional installation engineers team and specialized after-sale service team. When the machines
arrive your factory, we will send our installation engineers to your factory Our engineers will Guide you to install the machines
and training your workers how to operate the machines and maintain the machine.
4. Q: Voltage requirement ?
A: Our machines can use 380V, 220V, 240V, 415V, 480V, and 50Hz, 60Hz.
Contact: Mr YU LONG
skype: yulongmachine
MB/whatsapp/wechat:+86-15662799469
Email:inquiry@yljx168.com
facebook: https://www.facebook.com/yulongpelletmachine/
twitter: https://twitter.com/yulongjixie
SHANDONG YULONG MACHINE CO.,LTD
Xiuhui Town, Zhangqiu, Jinan, Shandong Pro, China
