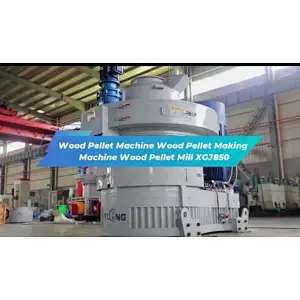

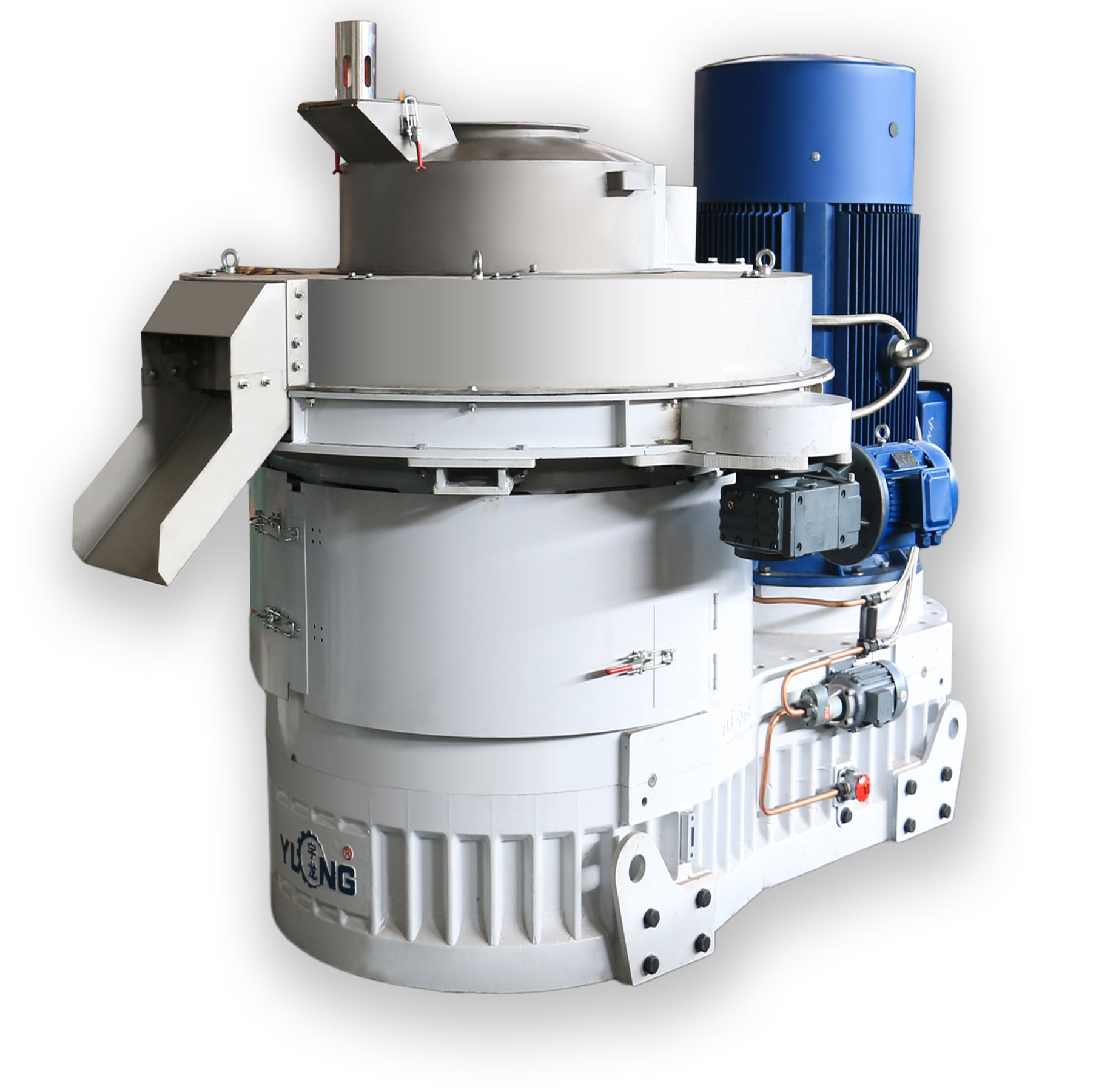

XGJ850 wood pellet machine
XGJ850 wood pellet machine
biomass pellet mill from YULONG
Suitable for wood, straw, rice husk, peanut shell, reed and other biomass materials to suppress pellets.
wood pellet production line
XGJ850 wood pellet machine
biomass pellet mill from YULONG
Suitable for wood, straw, rice husk, peanut shell, reed and other biomass materials to suppress pellets.
wood pellet production line

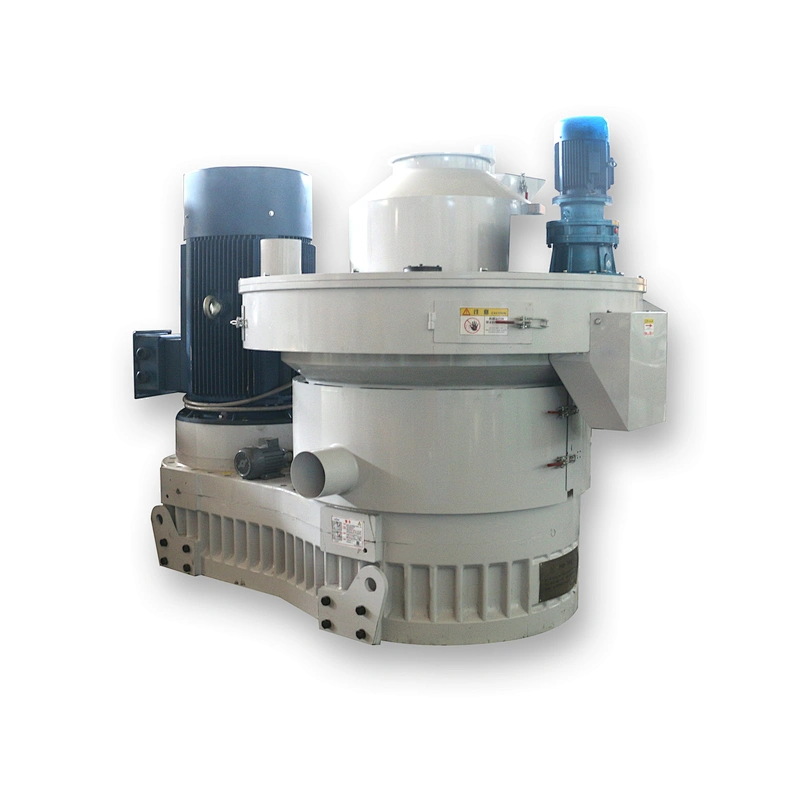

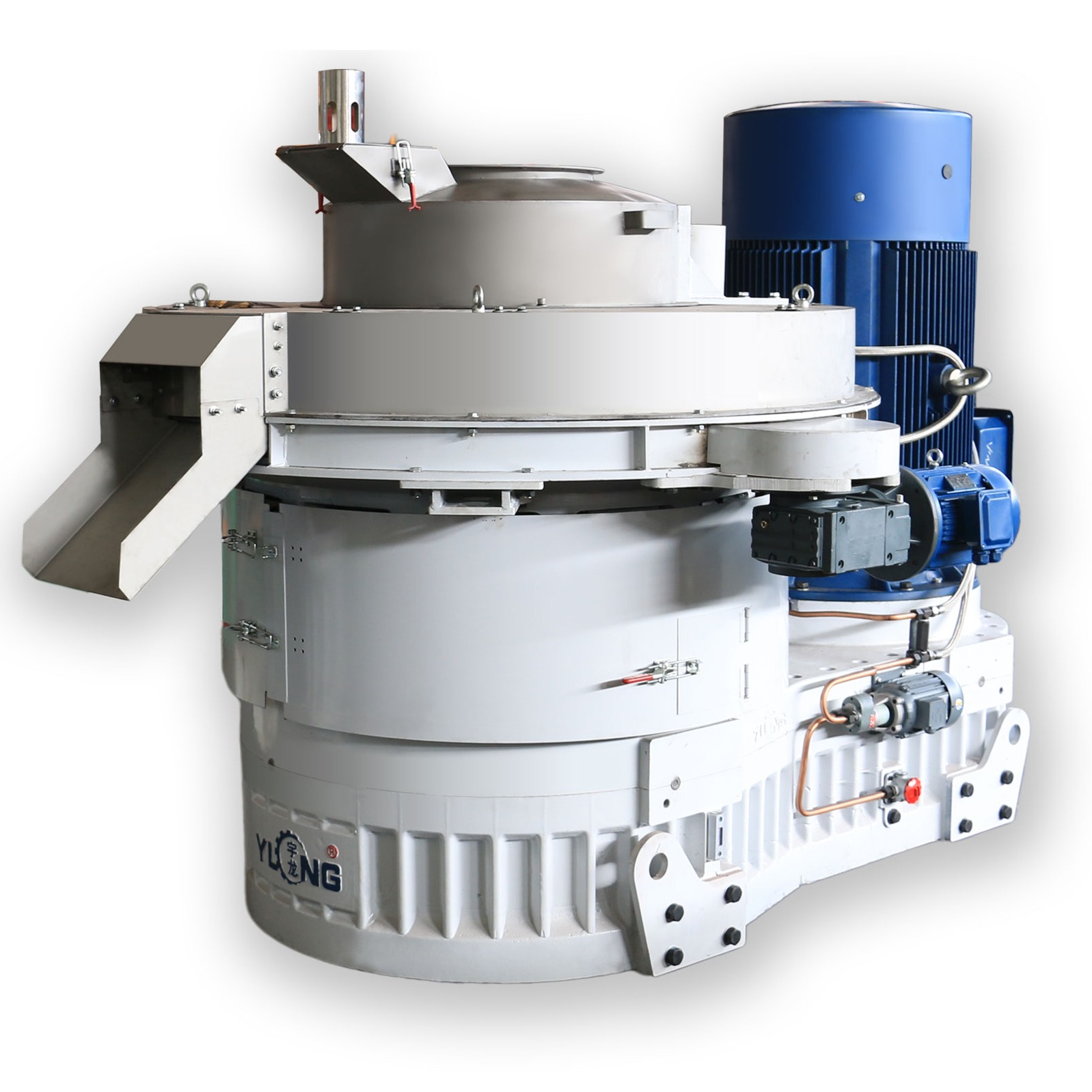

3-4T/H biomass pellet machine

Model NO.
XGJ850
Delivery:
FOB&EXW&CFR&
Minimum order quantity:
1 piece
Supply Ability:
99 piece / Month
Country of Origin:
Jinan City, Shandong Province, China
Stock Time:
35 Days
Quantity:

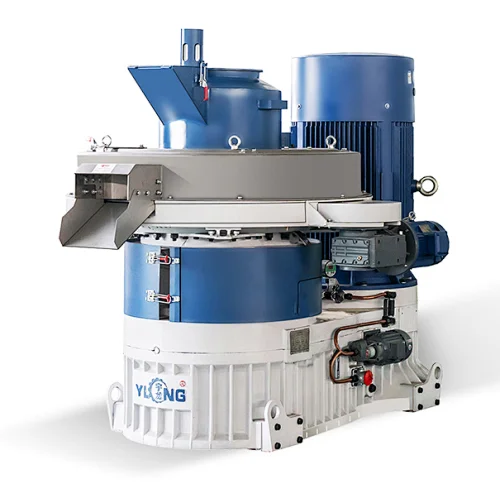

8th Generation Centrifugal Wood Pellet Mill


Model Number:XGJ850

Power:250kw

Raw Material Proce:Grass, Rice Husk, Wood Sawdust, Biomass, Straw,
Cotton Stalks...


Output (kg/h):3000 - 4000 kg/h

Pellet Diameter (mm):6-12

Voltage:3phases, 380V ,50hz

Dimension(L*W*H):3149mm*2056mm*2227mm

Certification:CE, ISO,SGS

Place of Origin:Shandong, China

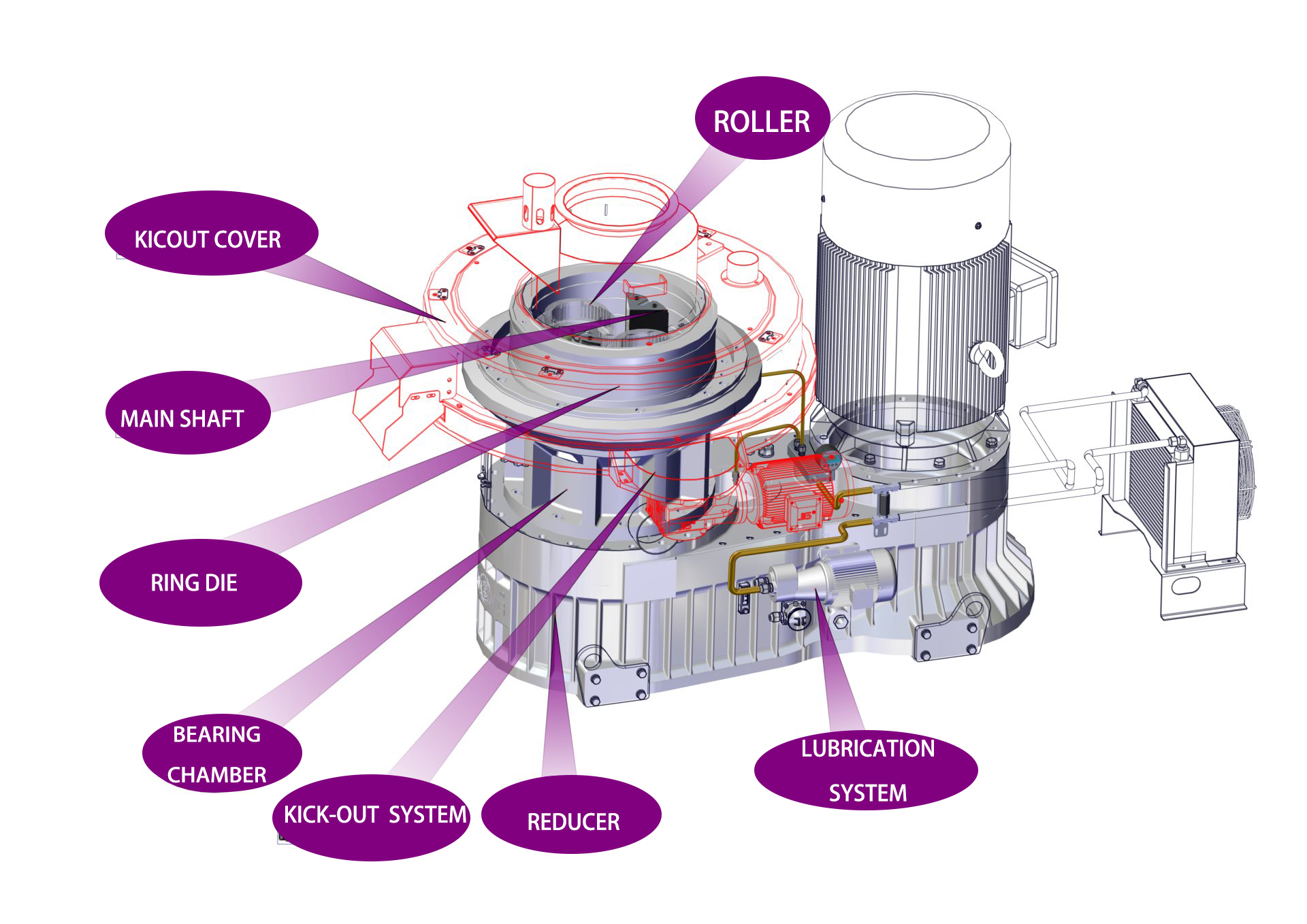

Biomass pellet machine is a kind of pellet equipment commonly used in the biomass energy industry. Biomass pellet machine is a new type of fuel forming machine that crushes biomass materials such as tree branches and straws into rod-shaped pellets, replacing coal. Biomass pellet machine is divided into flat die machine and ring die machine. The vertical centrifugal high-efficiency ring die pellet machine produced by our company combines the advantages of traditional horizontal ring die and flat die pellet machine, and is especially suitable for biomass pelleting.



The main advantages of the eighth generation biomass pellet machine:

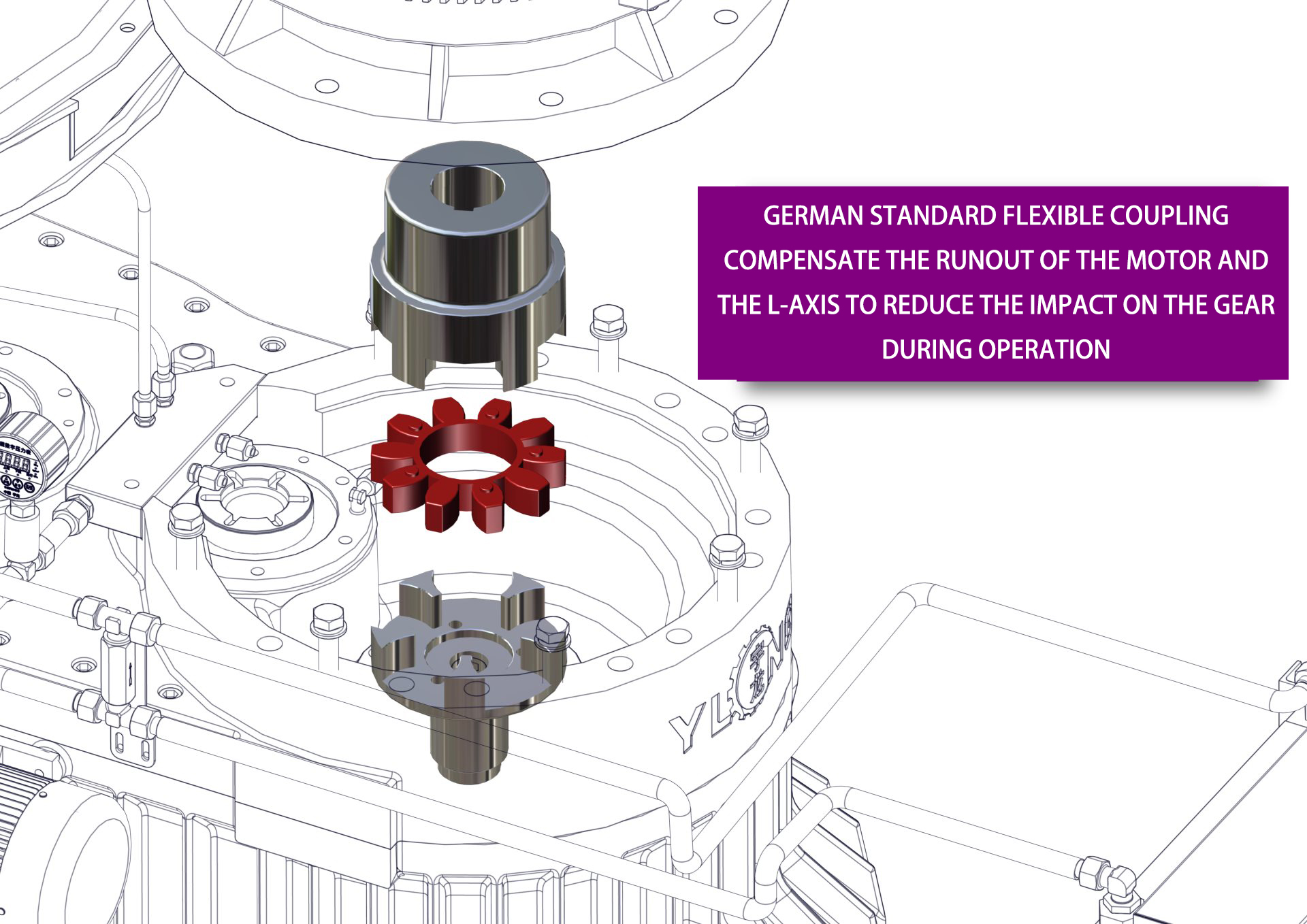

1. The main motor is changed to a standard flat key motor, and the German standard KTR elastic coupling is adopted with the reducer, which solves the problem of regular lubricating grease for the spline of the seventh generation biomass pellet machine. Moreover, the replacement cost of KTR elastomer is much lower than the replacement cost after spline damage.

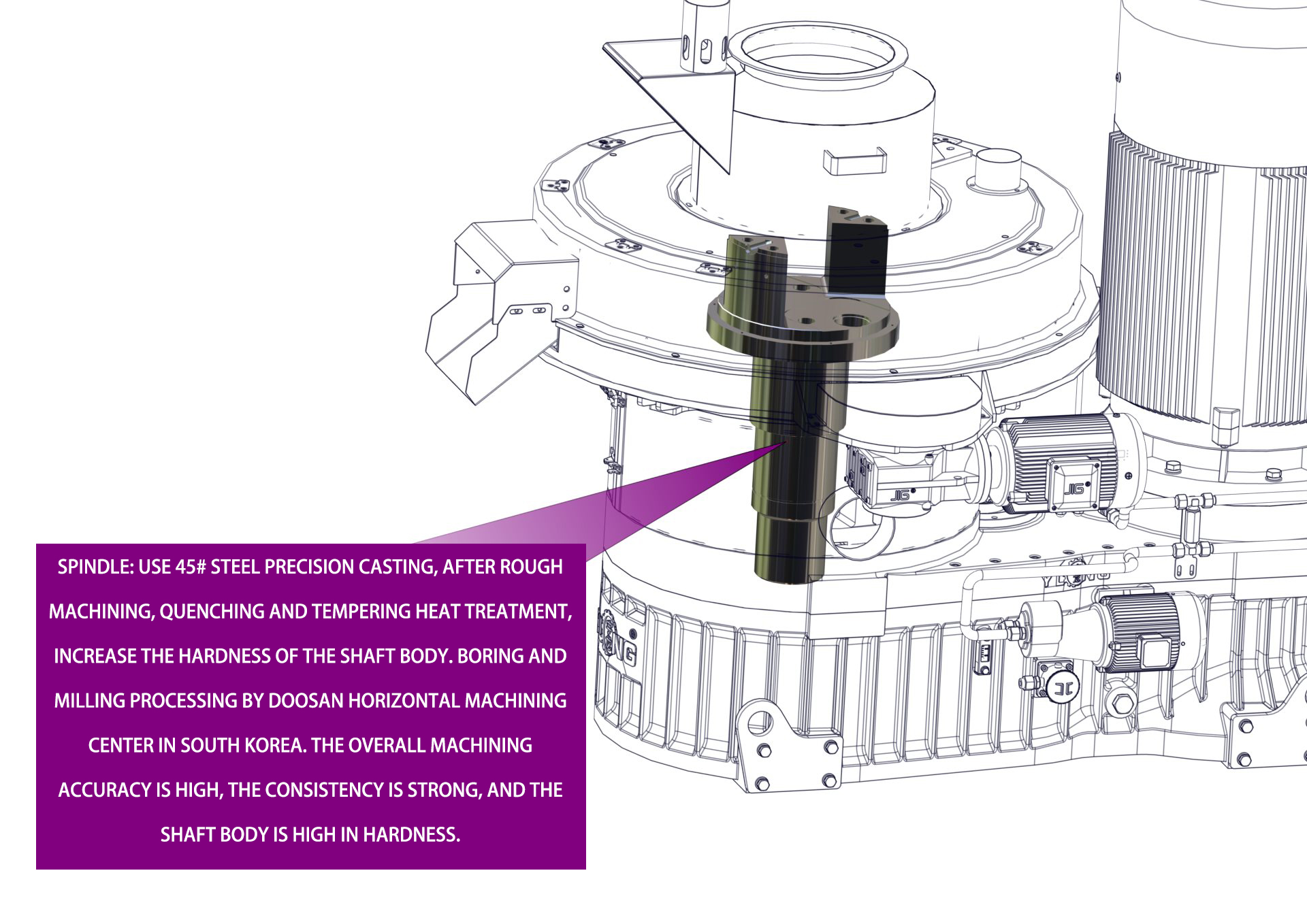

2. The positioning of the spindle frame plate and the spindle has been upgraded and improved, the pin positioning that is not easy to disassemble and easy to wear is removed, and the embedded positioning method of CNC machining is adopted, which is easy to disassemble and not easy to wear.

3. Improvement of kick-out system: The reducer of kick-out plate is replaced by a cycloidal pinwheel reducer to a hard-tooth surface reducer. The rotating components of the kick-out system are completely separated from the kick-out boot (the entire driving operation is outside), which completely solves the problem that the kick-out system is susceptible to high temperature steam. Moreover, in the kick-out boot of the pellet machine, except for the kick-out turntable, the rest of the non-moving parts that can contact the material and steam are all made of stainless steel, which fundamentally solves the corrosion problem of metal materials.

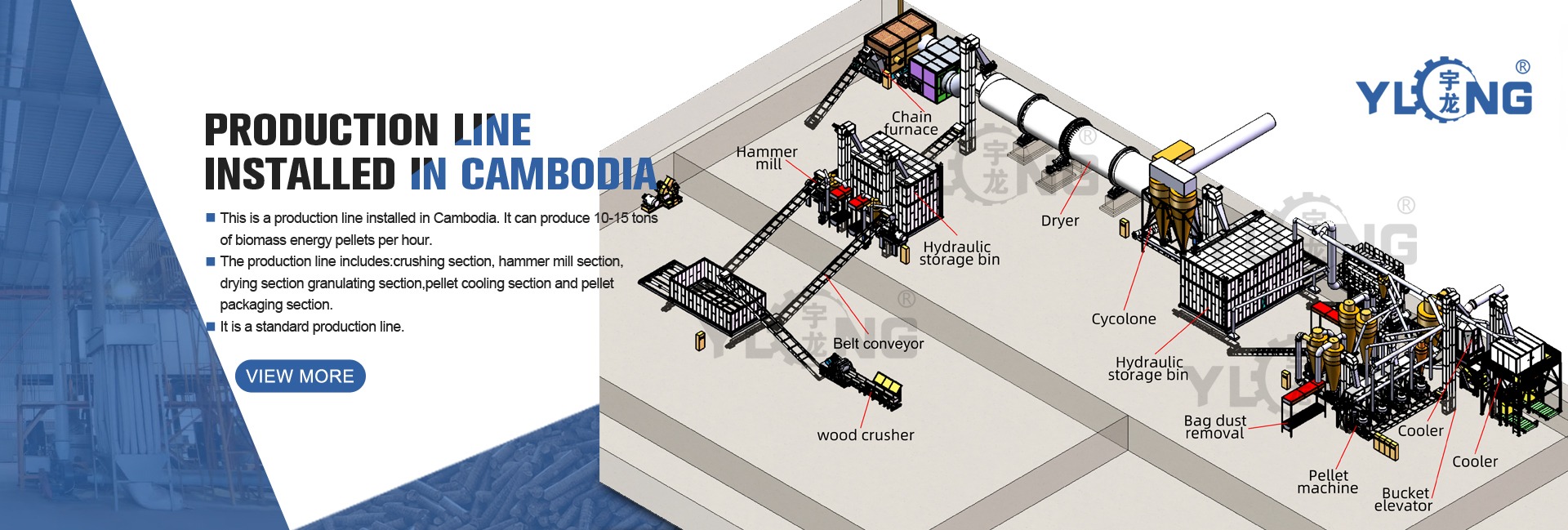

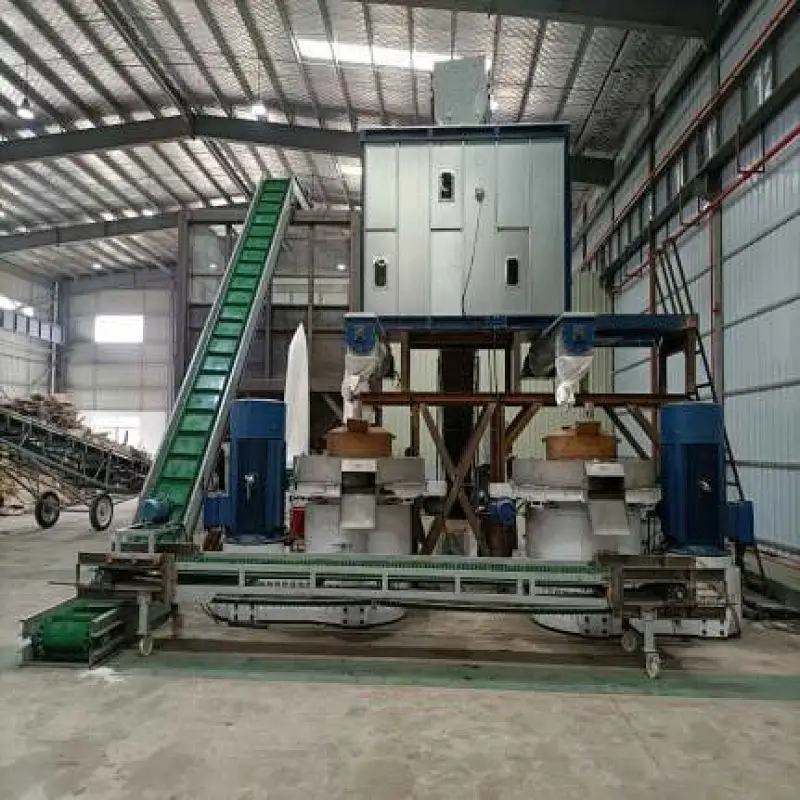

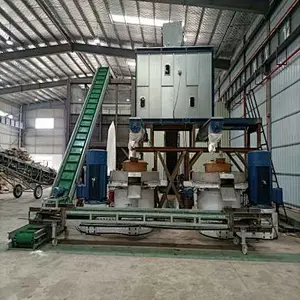

Large production line display of biomass pellets





  • Condition:New
  • Year:2021
  • Place of Origin:CHINA
  • Brand Name:YULONG
  • Model Number:XGJ
  • Voltage:380V
  • Power(W):250KW
  • Dimension(L*W*H):3149mm*2056mm*2227mm
  • Weight:13.5T
  • Certification:CE,ISO9001,SGS
  • Warranty:1 year
  • After-sales Service Provided:Engineers available to service machinery overseas
