1、The power is 132KW, capacity is 1.5-2tons/hr. The motor is directly connected to
the gear box to increase the conversion rate of kinetic energy and improve production efficiency.
2、The gear box adopts three-stage gear deceleration, the carrying capacity is 5 times
larger than the old model, and the service life is super long.The bearings of gear shafts are adjustable structure.The bearing can be adjusted without unloading the machine after long-term running of wear.The gearbox comes with a lubricating cooling system, it can cool down the lubricating oil without stopping the machine to ensure long-term operation.
The gearbox lubrication system is equipped with flow detection and over-pressure protection, which can prevent equipment failures caused by poor lubrication effectively.
3、New feed system. The external setting of the material dial completely solves the
problem that the dial material system is easily corroded by high temperature steam. It is a major innovation of the eighth generation pellet machine. In the material shifting cover, except for the material shifting turntable, other non-moving parts in contact with materials and steam are all made of stainless steel, which solves the corrosion problem of metal materials fundamentally.
4、Core component-ring die: It is made of wear-resistant stainless steel material,
quenched in a vacuum furnace, and the die has uniform hardness, no breakage, and super wear-resistant; the die holes are processed by high-speed gun drilling, the holes are evenly arranged, and the inside of the holes is smooth.
5、The core component-roller: the roller adopts super wear-resistant alloy welding process, instead of the past surface carburizing treatment. Long life span, while realizing the protection of the ring die.

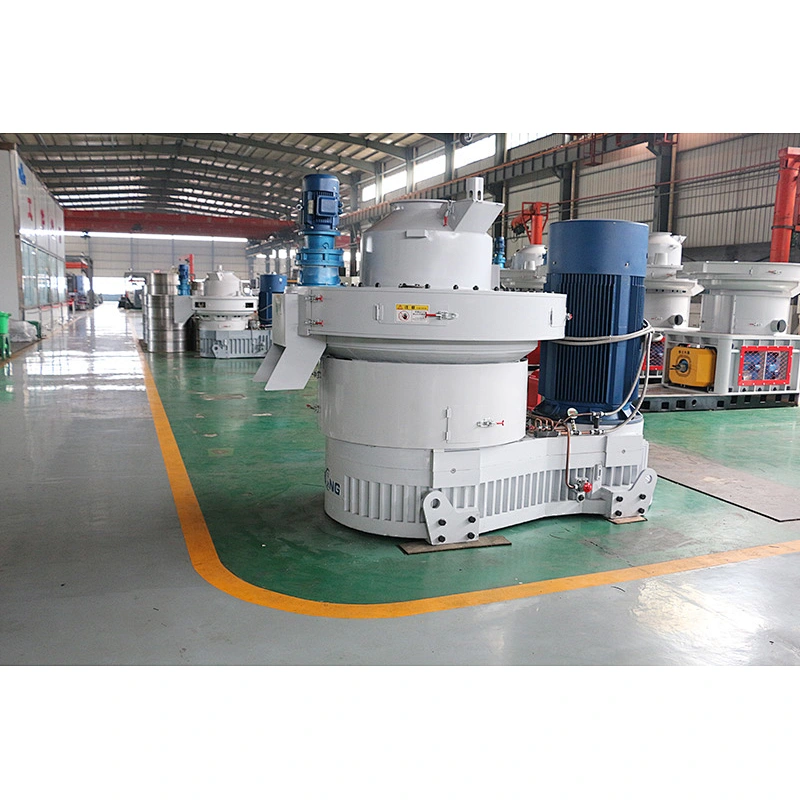

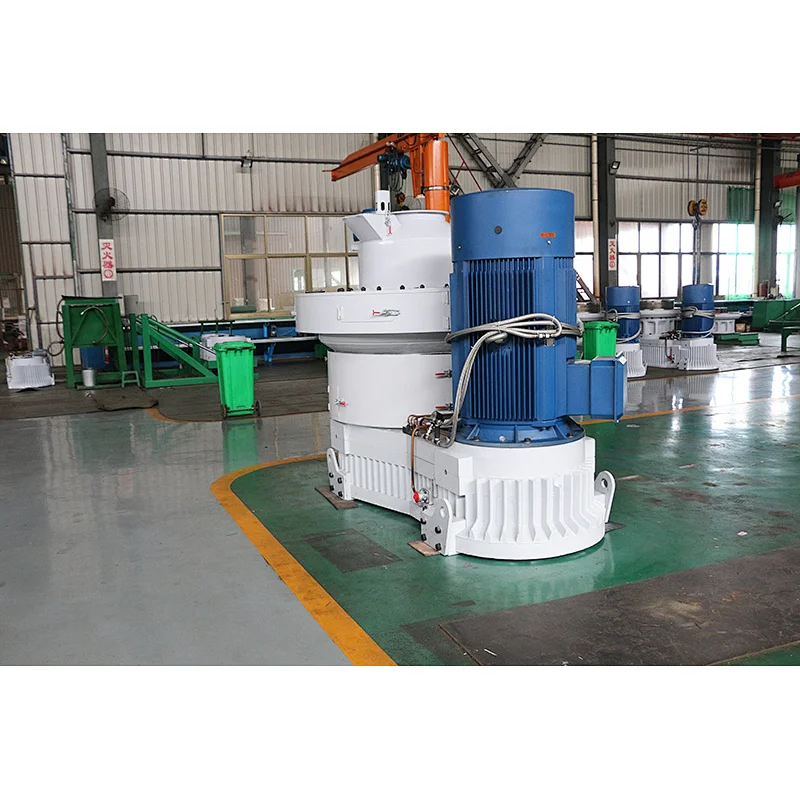

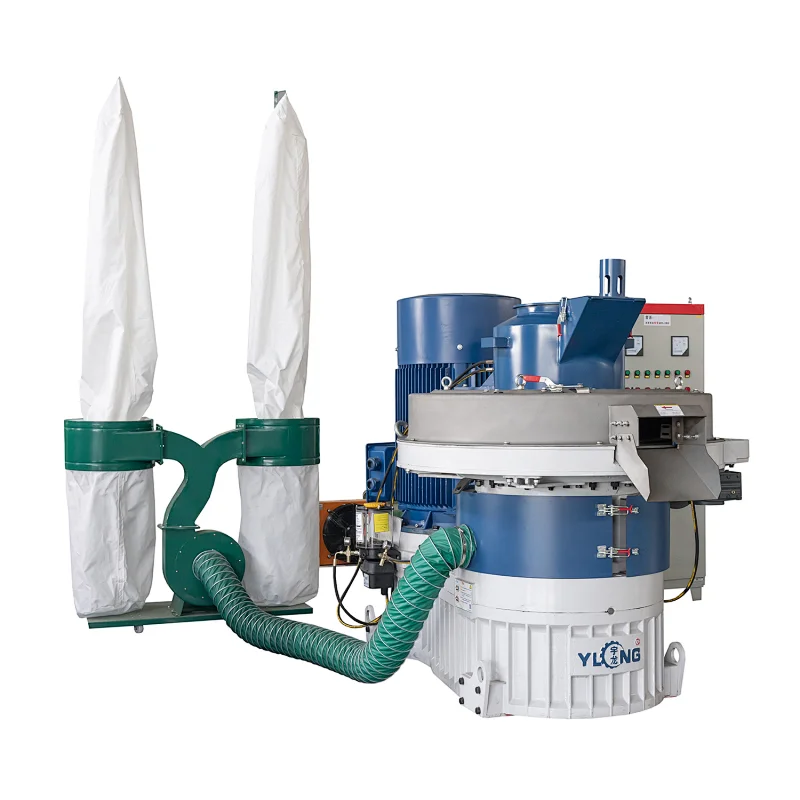

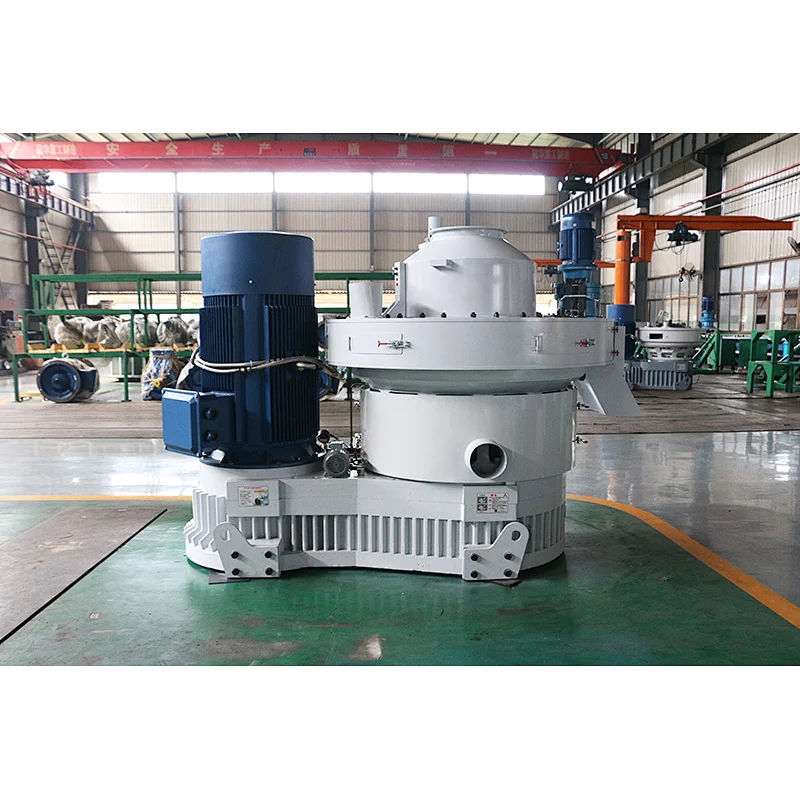

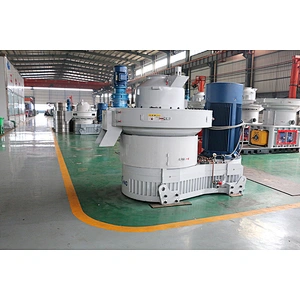

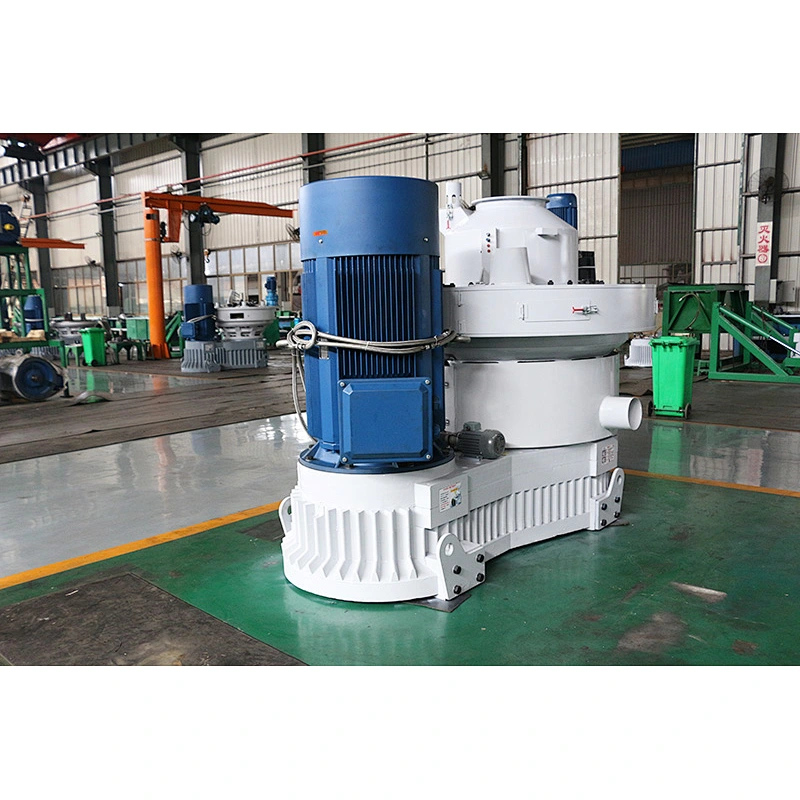

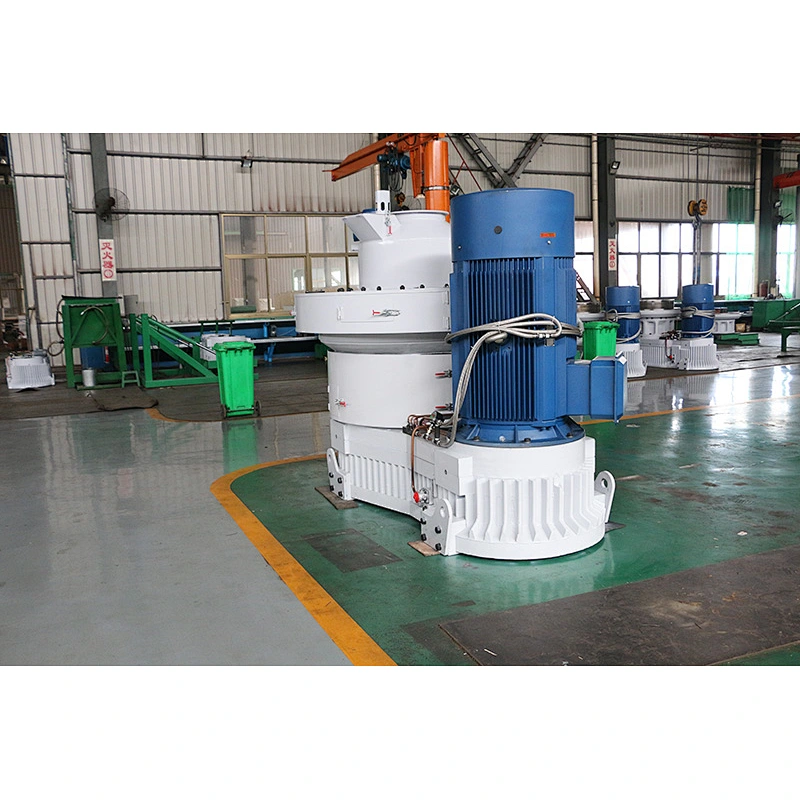

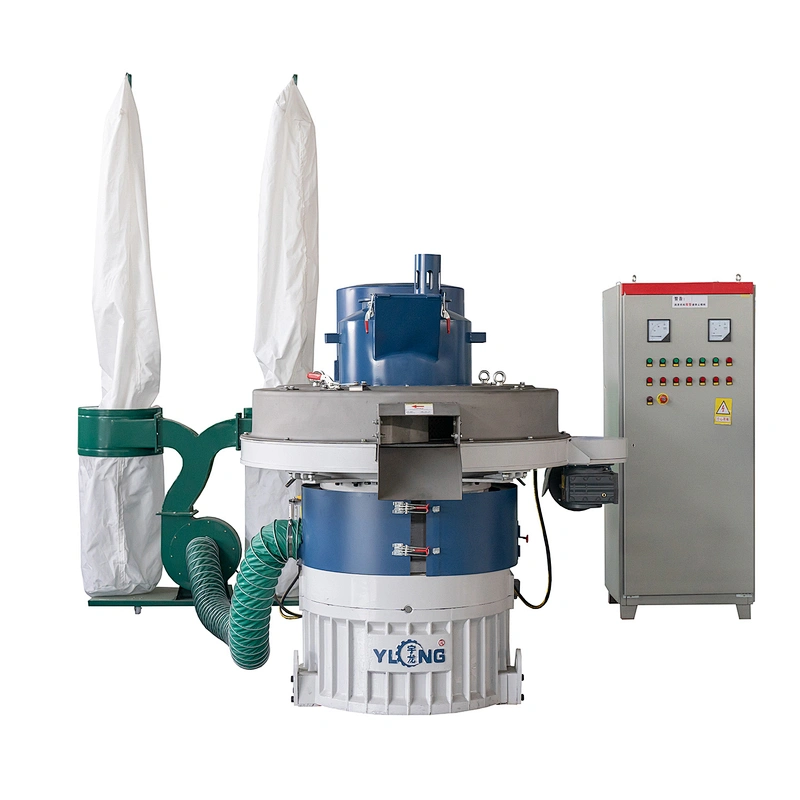

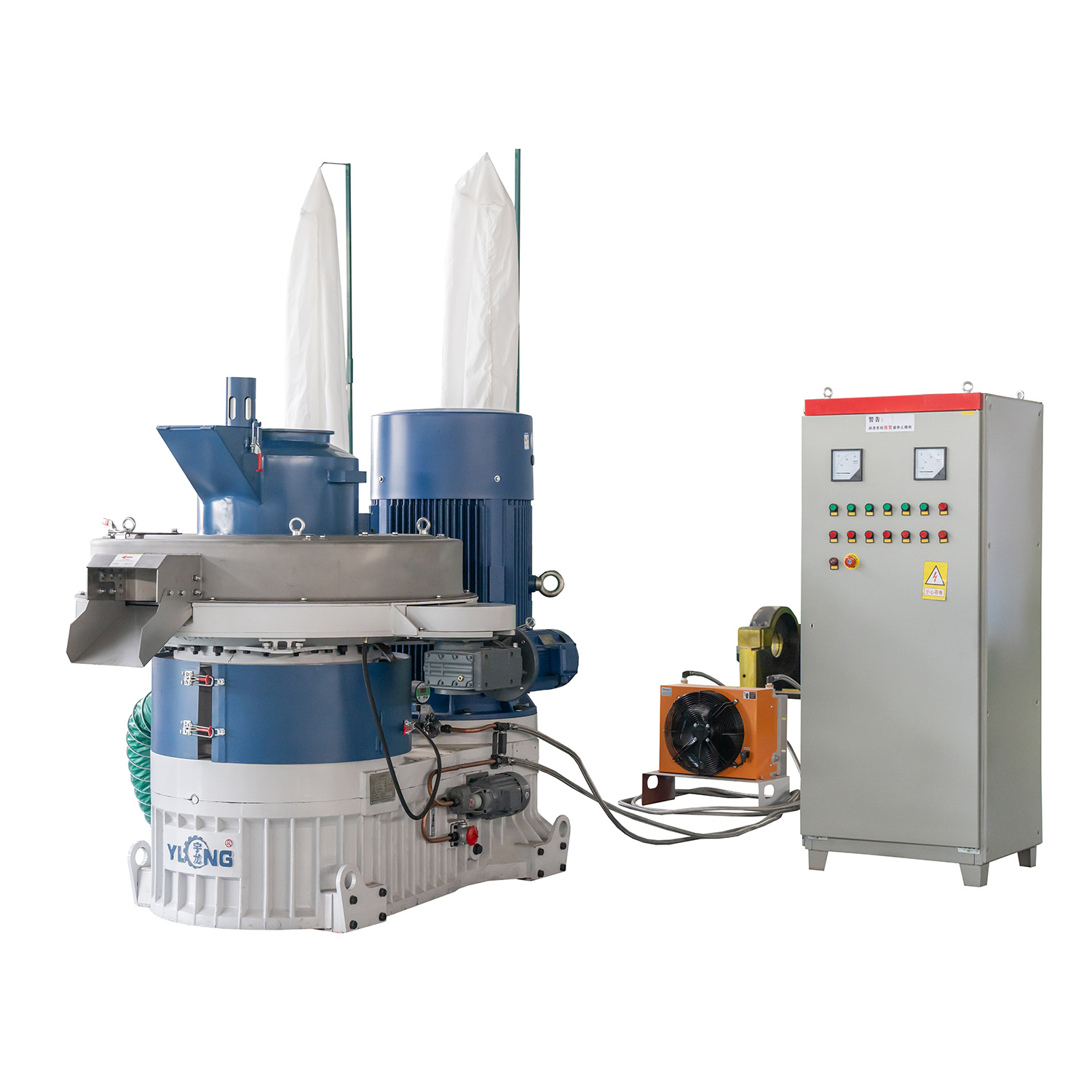

This is our main equipment-pellet machine. This is our XGJ560 model.Power supply is 132KW, the capacity is 1.5-2ton/hr. We also have XGJ850 model .Power supply is 250KW, the capacity is 3-4ton/hr. You can choose one model according to your needs.
