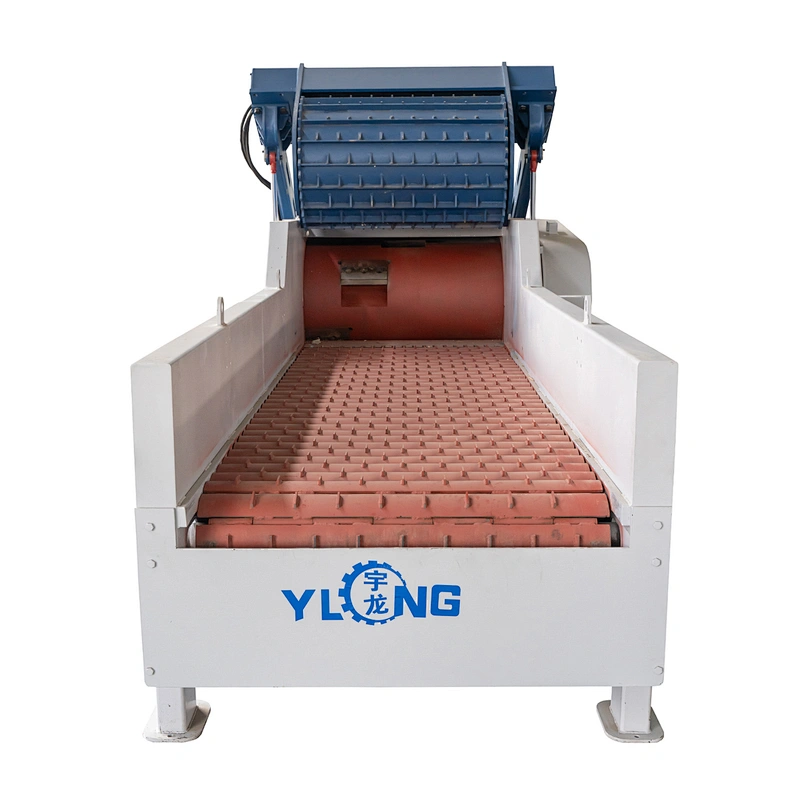

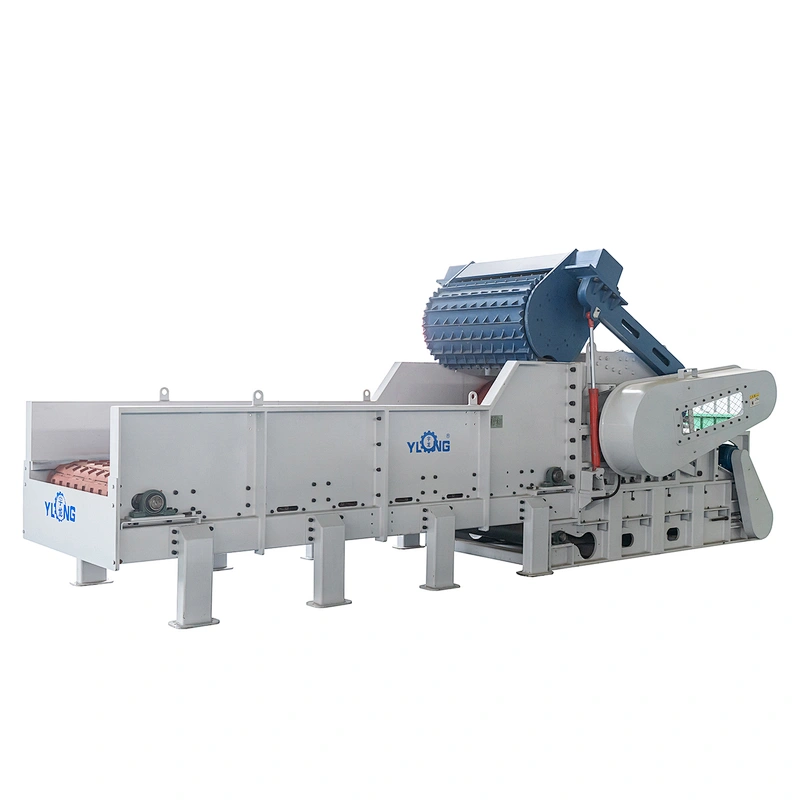

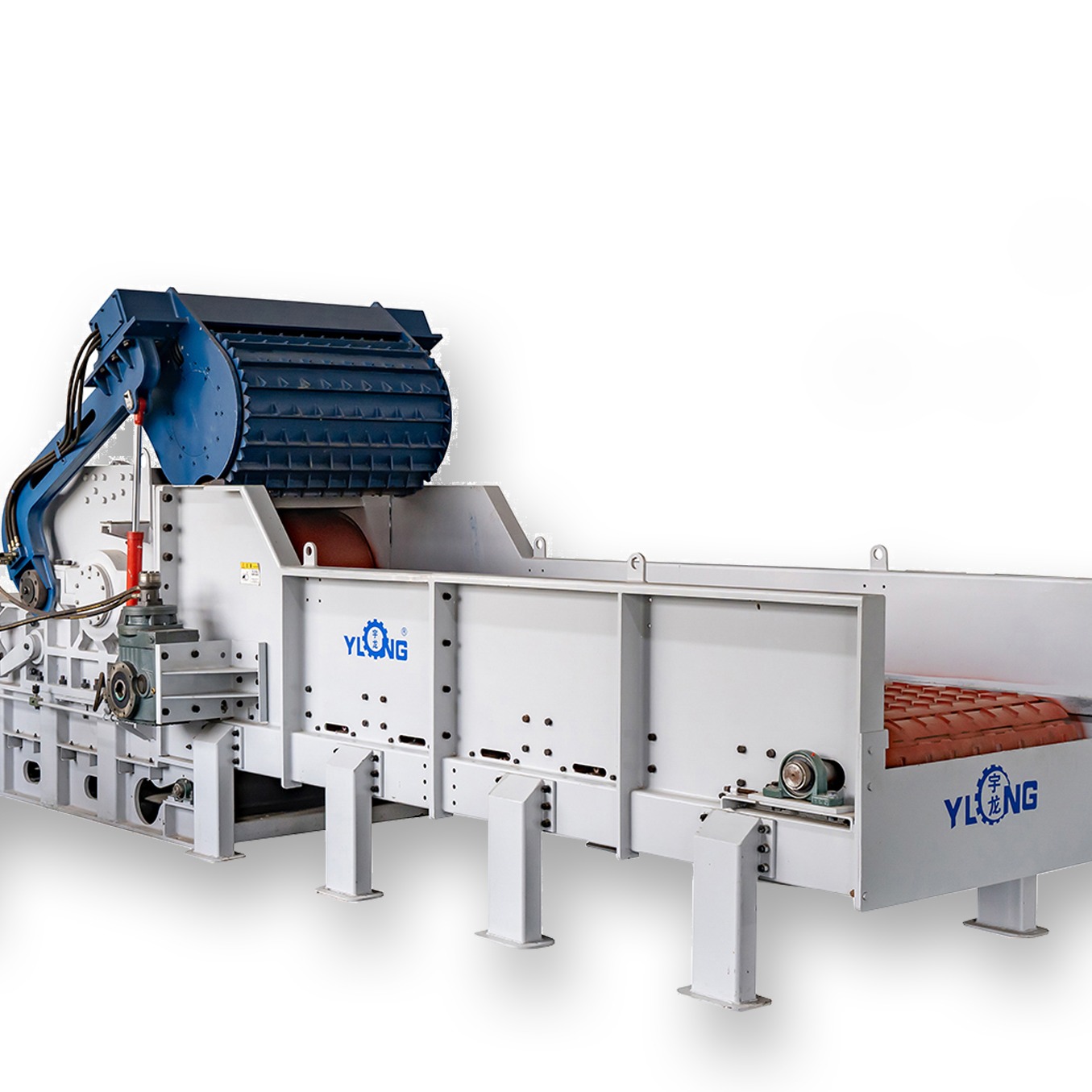

TR-A Biomass log Crusher

Wood logs crusher

Wood logs wood chipper BAOLONG (t-rex) wood chipper machine special equipment for the production of wood chips, which is widely used in raw material production of biomass energy industry and fuel storage in biomass power plants log  wood chipper Compact and reasonable structure, simple operation, high production capacity, wide adaptability of raw materials, high quality of crushing granularity, safety and reliability, convenient maintenance. Wood chippers can be installed different kinds of feeding system, log conveyor, Chain Conveyors, vibrating conveyor, belt conveyor for different kinds of wood, logwood, wood blocks, wood branches, etc. The outlet wood chips is about 10-30mm.

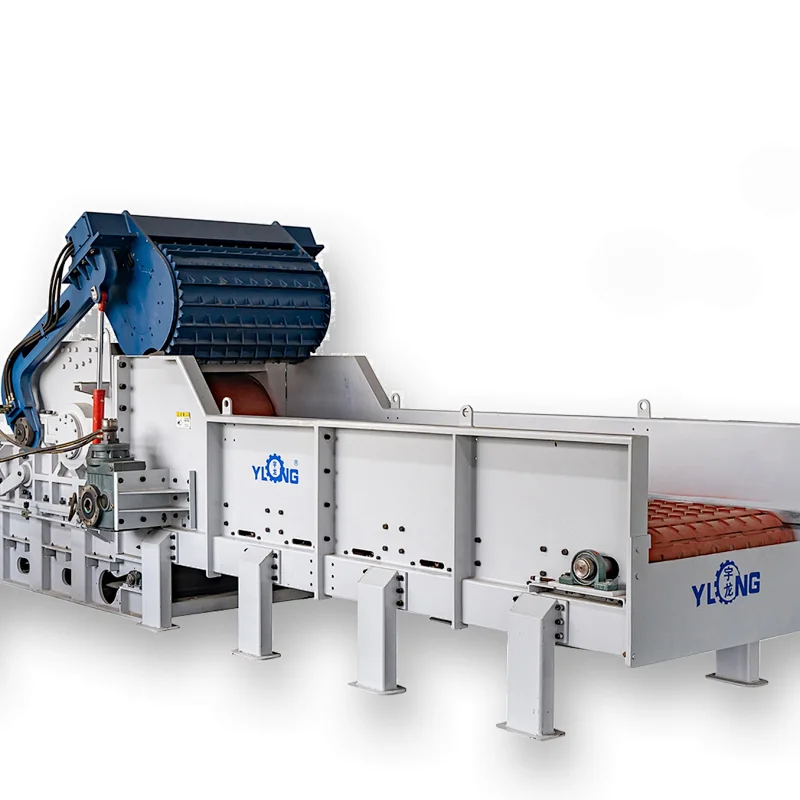

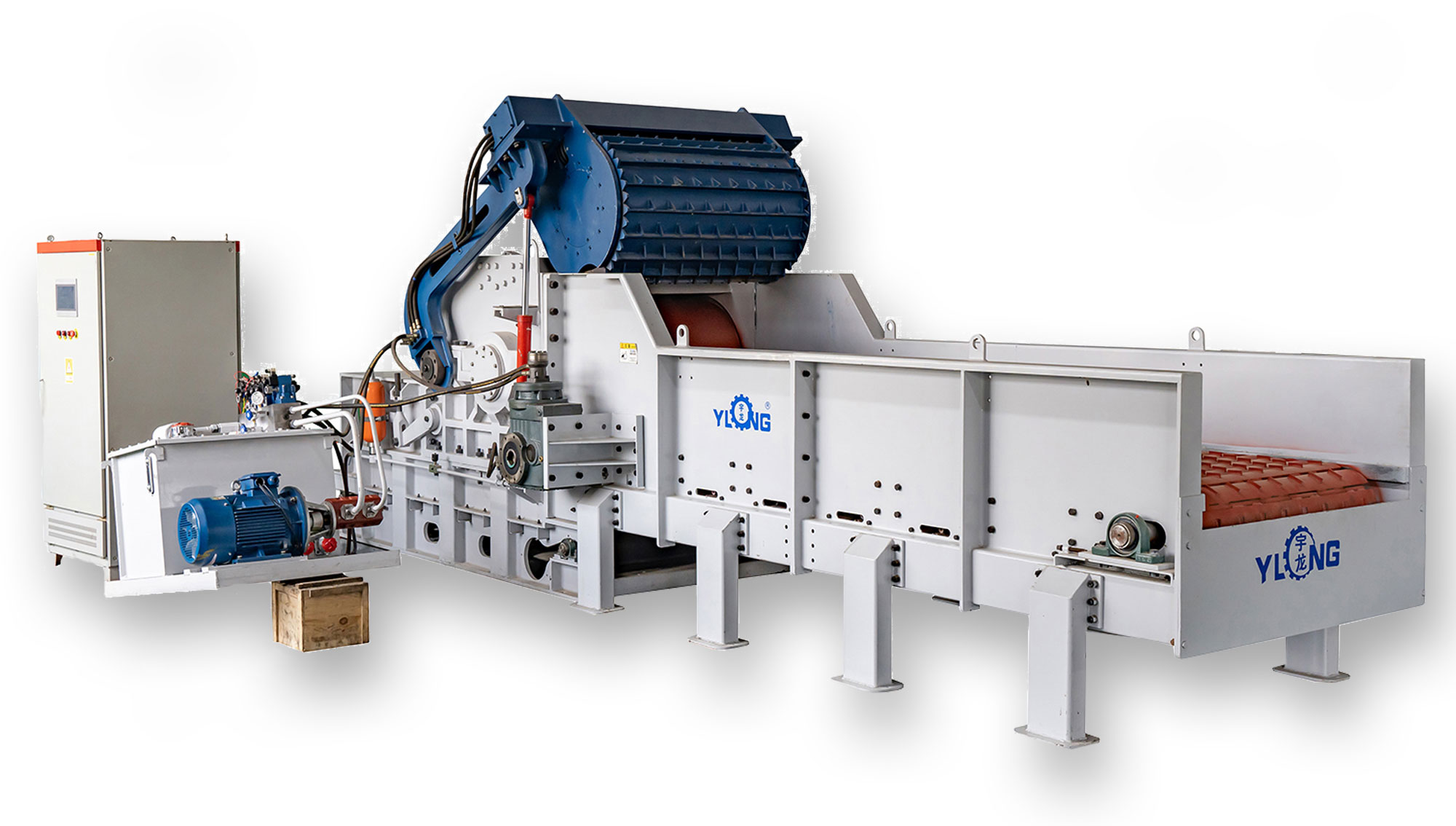

T-REX Wood Chipper

(T-REX) wood chipper a special equipment for the production of wood chips, which is widely used in raw material production of different kinds of wood,log wood,wood blocks,wood branches,wood offcut,Veneer etc. The outlet wood chips is about 10-30mm.

Parameters of wood chipper


Model	Power(kw)	Capacity(m3)	Inlet size(cm)	The knife NO.
T-Rex6550A	75+3+3+2.2	15-25	500×500	6
T-Rex6585A	110+3+3+2.2	25-40	850×500	10
T-Rex65120A	160+5.5+5.5+4	40-60	1200×500	14
T-Rex6585B	190kw/250hp	25-40	850×500	10
T-Rex65120B	250kw/335hp	40-80	1200×500	14
T-Rex8085A	200+3+7.5	70-150	850×600	3
T-Rex80130A	315+3+11	100-200	1300×620	5
