Parameters of pellet cooler
| Model | Calorific T/H | Power(kw) | Fan power(kw) |
| SKLN1.2 | 0.8-1.2 | 1.1+1.5+5.5+0.25 | 5.5 |
| SKLN1.5 | 1-2 | 1.1+0.18+5.5 | 5.5 |
| SKLN2.5 | 2-3 | 2.2+0.18+11 | 11 |
| SKLN-4 | 4-6 | 2.2+22+0.37+0.37 | 22 |
| SKLN-6 | 7-10 | 3+37+0.55+0.55 | 37 |
| SKLN-8 | 10-15 | 3+55+0.55+0.55 | 55 |

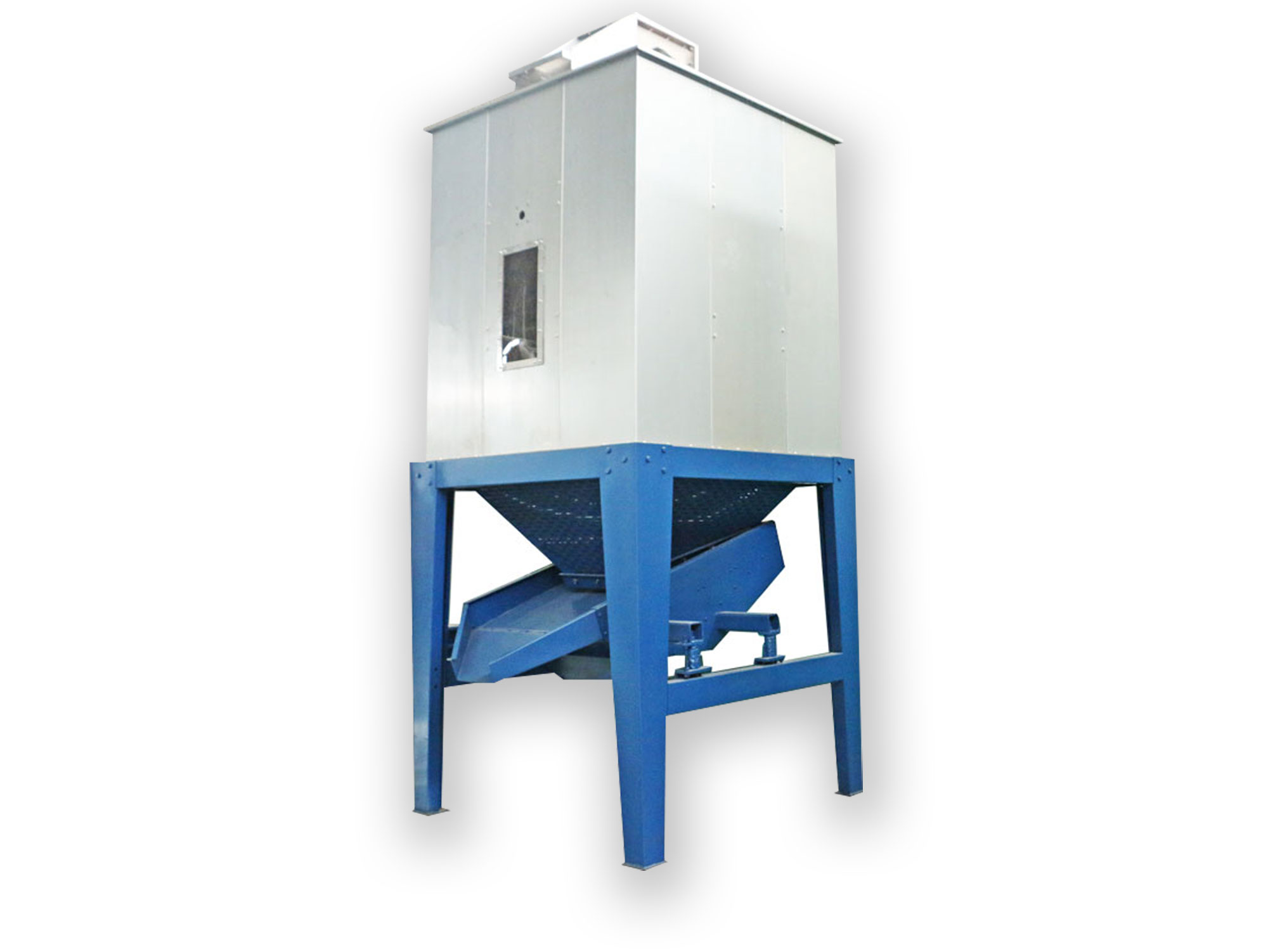

Introduction to Pellet Cooler
▶Our company uses SKLN series counter-flow pellet cooler Let's take a look at the main components: the
upper housing, middle bin, cooling sieve, vibrating screen, the frame, the observation window, bag dust collector, fan blower and other parts components.。 The cooler is mainly used to cool high-temperature pellets after pelleting; To reduce the temperature and humidity of the pellets, so as easy to transport and storage.
▶ After the pellets come out of the pellet
machine, the temperature can be close to 70 degrees. The high-temperature pellets are very easy to break and produce water vapor, but the temperature of cooled pellets is close to the atmospheric temperature and can be directly packaged, so it is essential part in large pellets production lines, that to convenient the pellet into next section (packaging section).
machine, the temperature can be close to 70 degrees. The high-temperature pellets are very easy to break and produce water vapor, but the temperature of cooled pellets is close to the atmospheric temperature and can be directly packaged, so it is essential part in large pellets production lines, that to convenient the pellet into next section (packaging section).
Compared with the old pellet cooler, the new cooler use thick galvanized sheet materials,has high density,not easy to deform,corrode and has long service life.
▶ 1. The pellet cooler adopts modular structure installation, it’s convenient for transportation and customer site assembly.
2. And it’s adopt the unique vibration mechanism to discharge pellets, stable operation and smooth discharging.
▶ 1. The pellet cooler adopts modular structure installation, it’s convenient for transportation and customer site assembly.
2. And it’s adopt the unique vibration mechanism to discharge pellets, stable operation and smooth discharging.
3. The pellet cooler set up the material level device, real-time monitoring of the material position in the bin, with high degree of
automation.

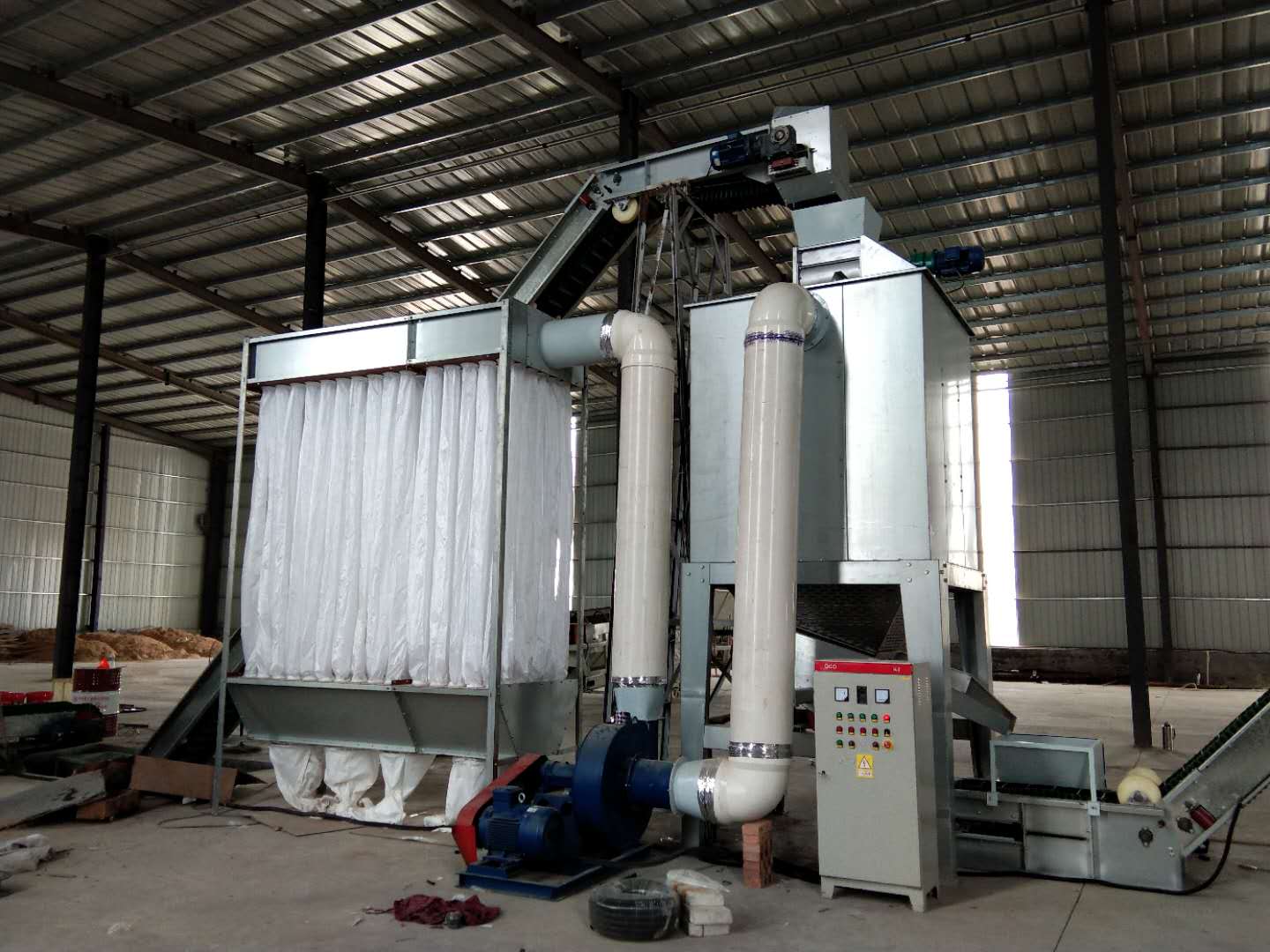

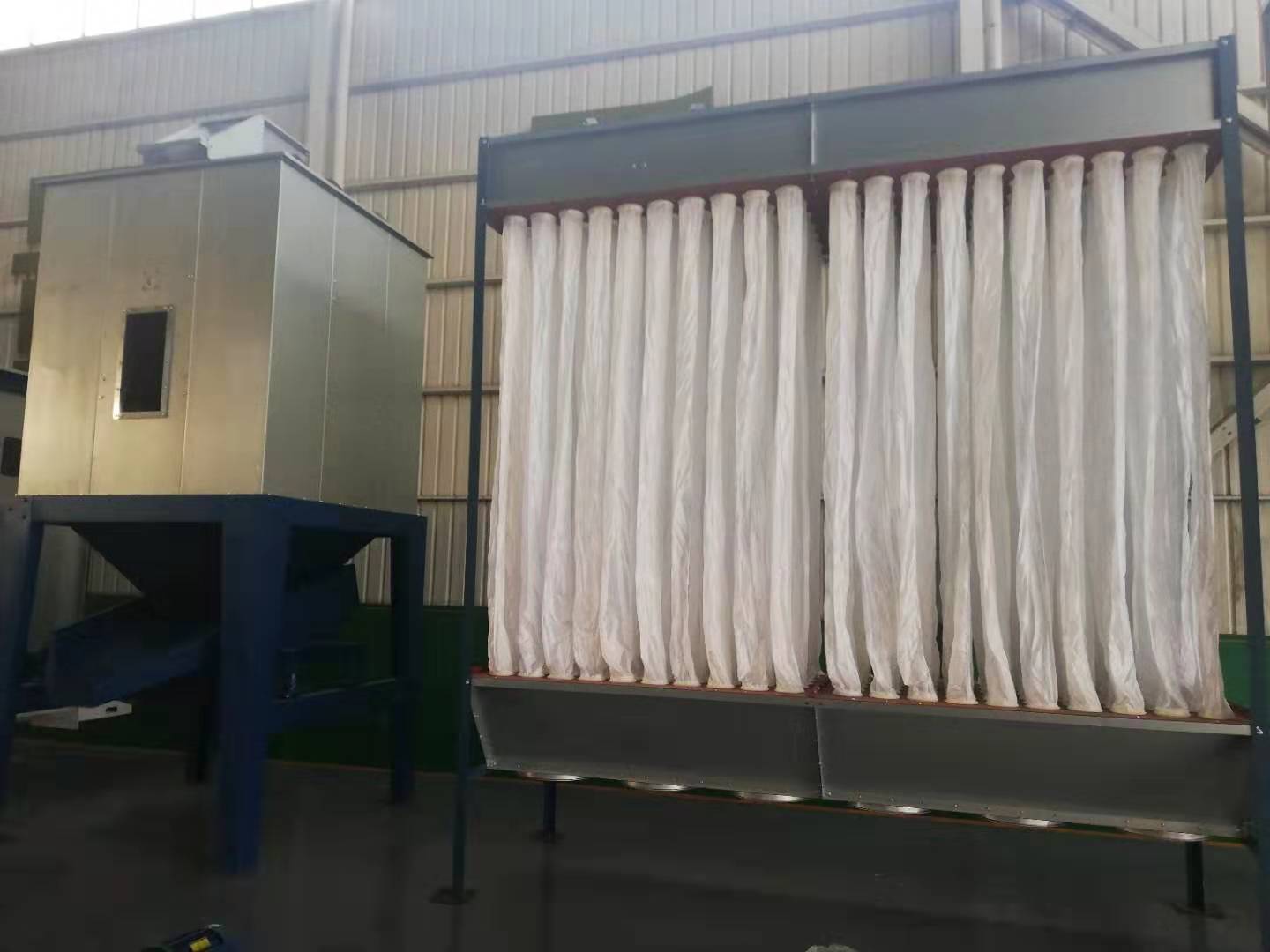

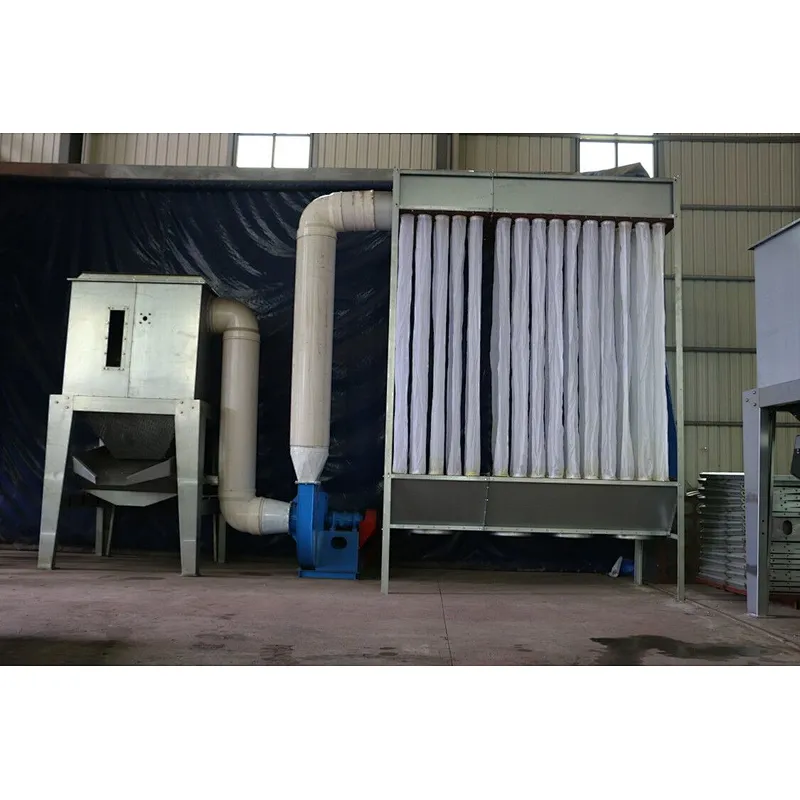

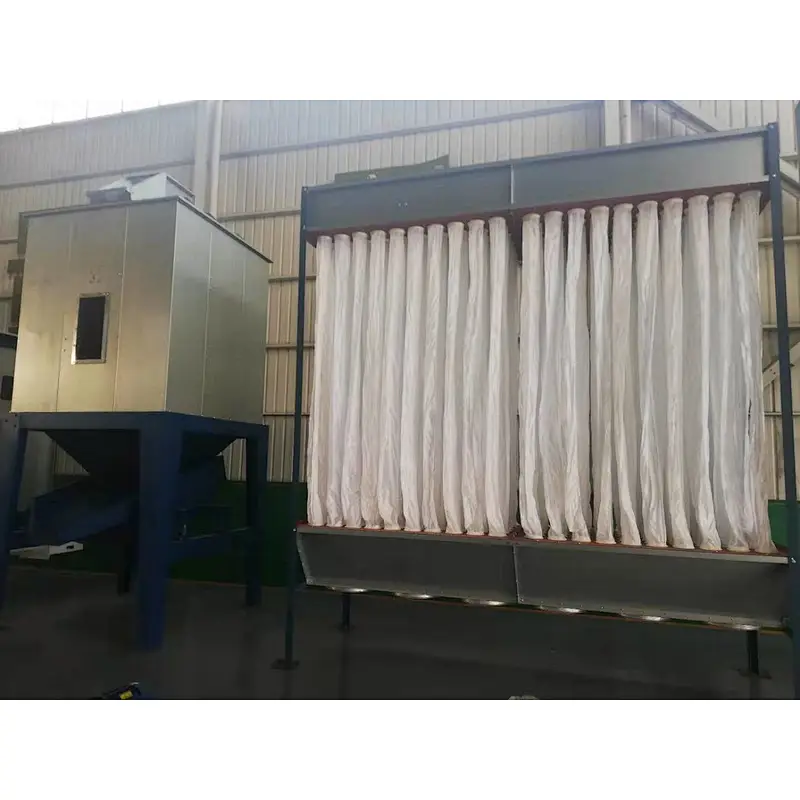

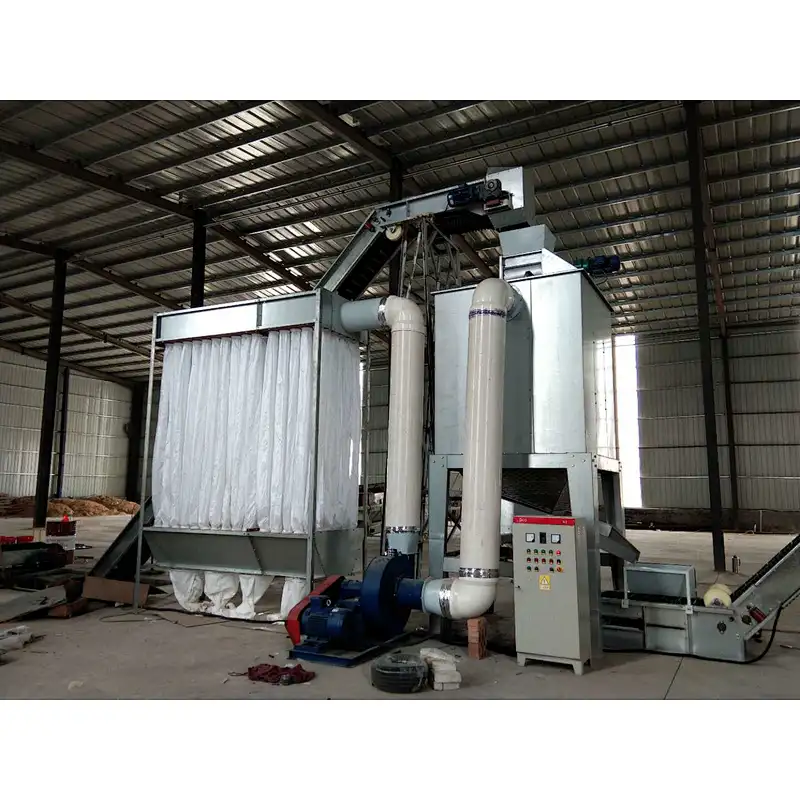

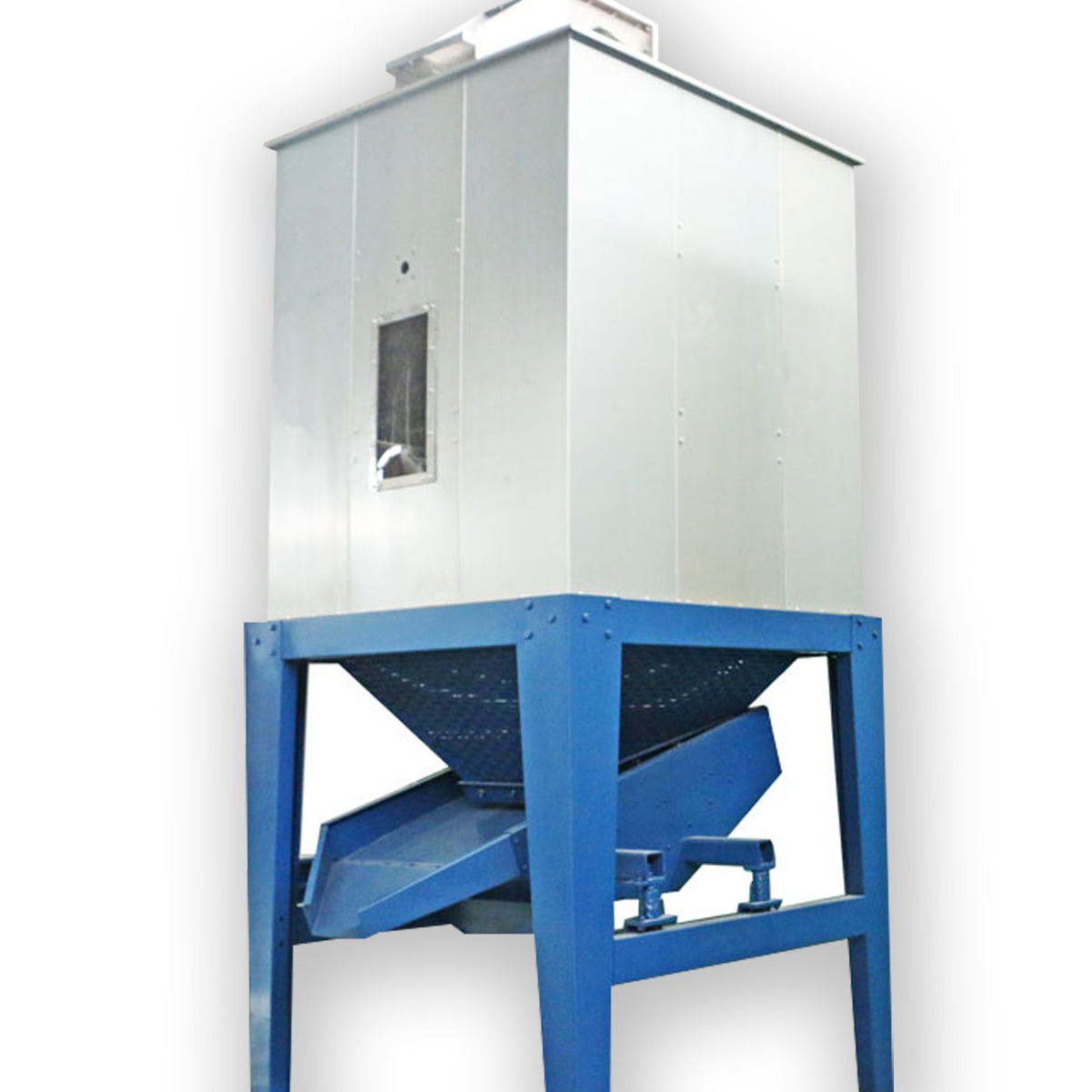

Pellet cooler physical display
automation.
Pellet cooler physical display
Our team
Certificate

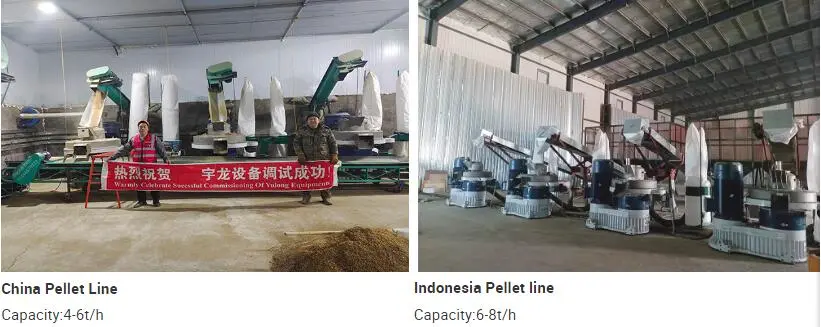

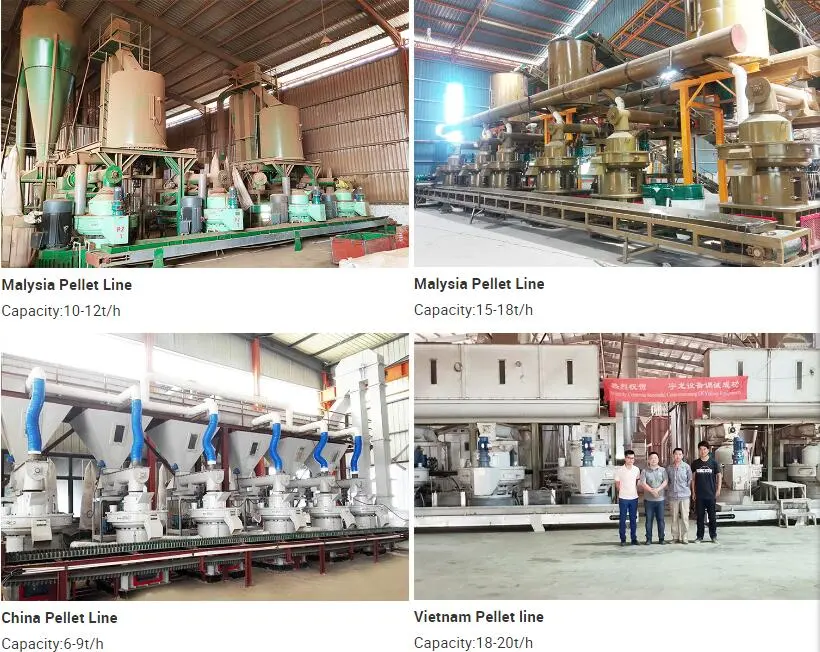

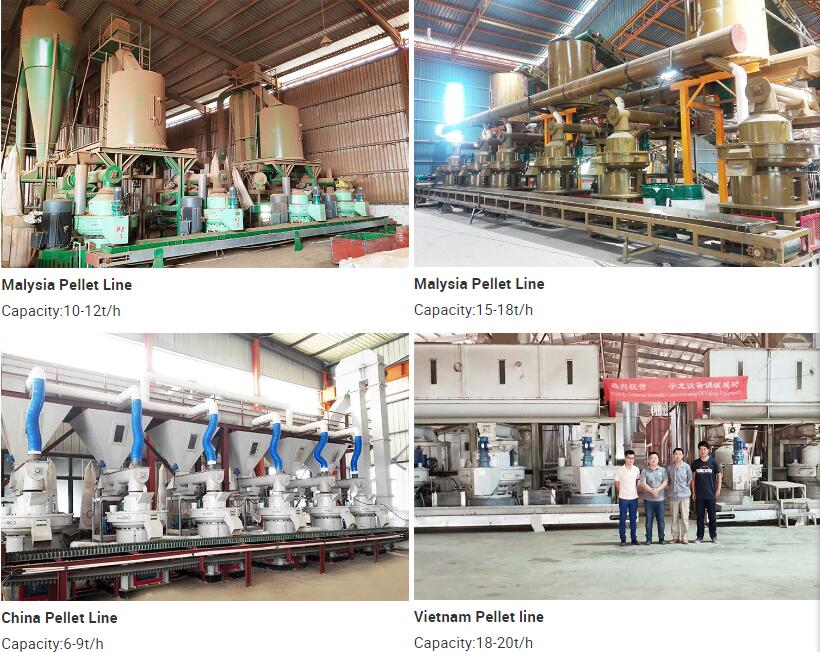

Our case
